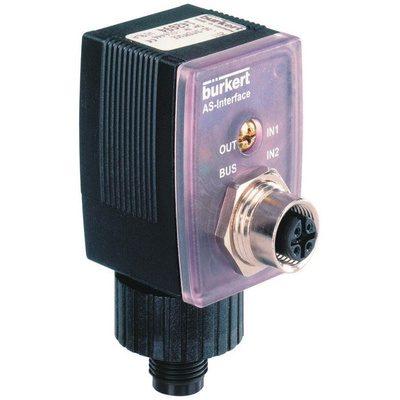

142695, Burkert Solenoid Valve AS-Interface Cable Plug for use with 6213 Solenoid Valve, 6519 Namur Valve, 8032 Sensor

AS-Interface Cable Plug Series 2511

Cable plug for use with a range of solenoid valves
Converts standard solenoid valve to an addressable AS-I device
DIN 175301-803 (formerly DIN 43650)
Bus-supplied power and data signalling (up to 5W max switching power) and externally supplied power and data (up to 15W max switching power)
Supply voltage: 29.5 to 31.5 V – AS-I power supplied
Outputs: Voltage 24Vdc
Maximum current: Electronics 10mA; Bus-supplied 300mA (electronics, valves and sensors); External supplied 80mA (electronics and sensors)
Status indication LED's
Ambient temperature: 0 to +50°C
Terminations: M12 plug for connection to AS-Interface; additional M12 socket for option with auxiliary power supply input
Protection: IP65 with cable plug

2510/2511 AS-Interface cable plug Data Sheet

AS-Interface Technical Data and Assembly Instructions
