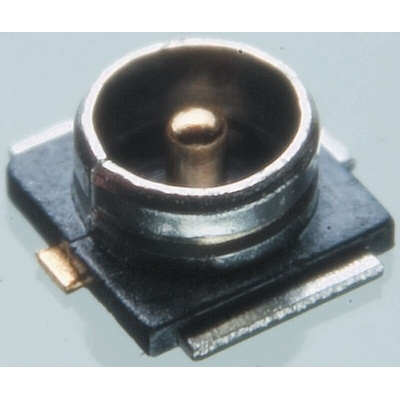

W.FL-R-SMT(10), Hirose 50Ω Female 1 Outlet Faceplate, PCB Mount

Receptacles

U.FL Series
Being one of the smallest SMT ultra miniature connectors, Hirose U.FL provides a low mated height of 2.5mm whilst occupying only 7.7mm² board space.
The U.FL RF connector offers performance from DC to 6 GHz. This make the U.FL suitable for IEEE80211a & b based wireless LAN applications.

Applications: GSM & GPS Modules from Siemens, Mobile phones, Radio communications equipment, Measuring instruments, GPS, Wireless LAN, Bluetooth.

H.FL Series
Low profile connectors/ assemblies for use when space and weight are at a premium. The connectors are equipped with a scoop-proof mechanism protecting against mis-insertion.

W.FL Series
This connector has a frequency range of DC to 6GHz making it perfect for wireless LAN, Bluetooth PDA, GPS, electronic measuring instruments and any space critical electronic equipment.
The PCB mount receptacle weighs only 5.6mg, the outer shell is silver plated with a gold centre contact. Mounting onto the PCB is achieved with three ground points & a centre contact to give stability, performance & strength. The SMT receptacle uses only 3.4mm sq of PCB real estate. VSWR 1.3 max up to 3GHz, 1.35 max up to 6GHz.

W.FL Series Catalogue
