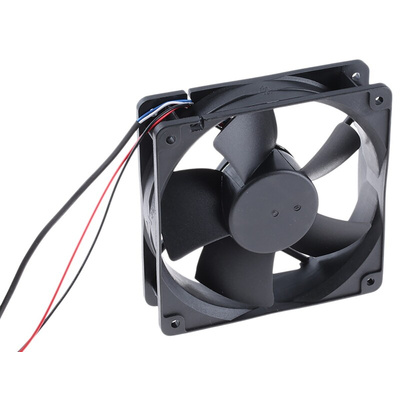

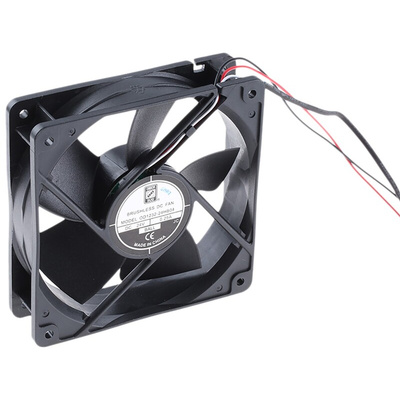

RS PRO Axial Fan, 24 V dc, DC Operation, 203.9m³/h, 6W, 280mA Max, 120 x 120 x 32mm, Вентилятор

RS PRO 24 V DC, DC Axial Fan, 120 x 120 x 32 mm, 203.9 m³/h, 6 W

This axial fan from RS PRO provides ventilation and keeps instruments cool. Use it in your cabinets and enclosures to protect your components from overheating.
The diecast aluminium frame is lightweight and won't put a strain on your structures. An inbuilt thermistor speed controller monitors the fan's operating temperature to prevent overheating. You don't have to worry about the motor burning out as the device comes with a locked rotor alarm that alerts you when the motor locks up.
The axial fan's RoHS (Restriction of Hazardous Substances) certification means it contains no more than minimal amounts of any hazardous substances. Install this item in your server racks to keep your patch panels, hubs and routers cool.

Features and Benefits

• DC operation
• Airflow of 203.9 m³/h
• Ball-bearing type
• Dimensions of 120 x 120 x 32 mm
• Backward direction of curve
• Fan speed of 3750 rpm (rotations per minute)
• Maximum current of 280 mA
• Noise level of 51 dB
• Power consumption of 6 W
• Thermistor sensor output type
• Special features of auto restart, brushless, locked rotor protected and polarity protected
• Static pressure of 0.42 in/H2O
• Supply voltage of 24 V DC
• Lead wire termination type
