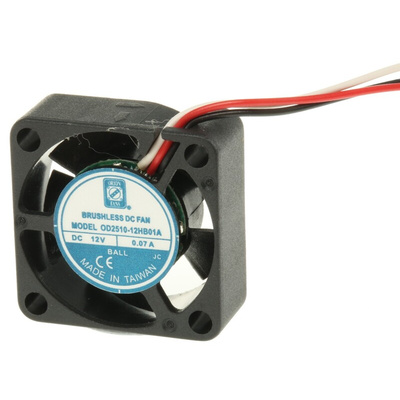

RS PRO Axial Fan, 12 V dc, DC Operation, 4.6m³/h, 840mW, 90mA Max, 25 x 25 x 10mm, Вентилятор

RS PRO 12 V DC, DC Axial Fan, 25 x 25 x 10 mm, 4.6 m³/h, 840 mW

Need a way to keep your instruments and components cooled and ventilated? Try this axial fan from RS PRO. It keeps the equipment in your cabinets and enclosures cool to stop them from overheating.


Thanks to its polybutylene terephthalate (PBT) thermoplastic construction, the product won't ignite, preventing fire hazards in your workspace. It's also easy to clean as it's resistant to both chemicals and stains.


The axial fan is RoHS (Restriction of Hazardous Substances) compliant, so it contains only trace amounts of any harmful materials. Use this item in your server racks to keep your hubs, routers and patch panels cool.

Features and Benefits

• DC operation


• Air flow of 4.6 m³/h


• Ball bearing type


• Dimensions of 25 (height) x 25 (width) x 10 mm (depth)


• Backward direction of curve


• Fan speed of 12000 rpm (rotations per minute)


• Maximum current of 90 mA


• Noise level of 31 dB


• Power consumption of 840 mW


• Open collector sensor output type


• Auto restart


• Brushless


• Locked rotor protected


• Polarity protected


• Static pressure of 0.23 in H2O


• Supply voltage of 12 V DC


• Wire termination type

RS Pro Datasheet
