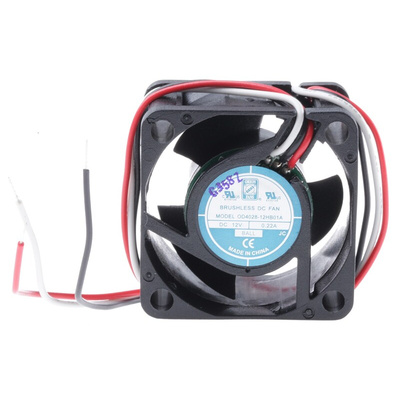

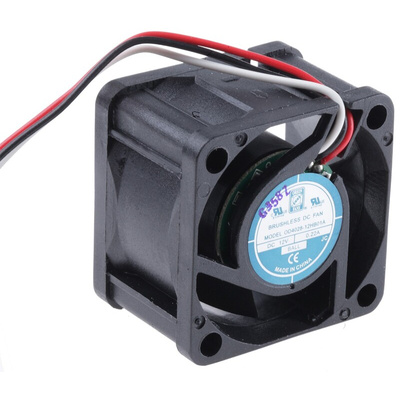

RS PRO Axial Fan, 12 V dc, DC Operation, 20.4m³/h, 2.64W, 200mA Max, 40 x 40 x 28mm, Вентилятор

RS PRO 12 V DC, DC Axial Fan, 40 x 40 x 28 mm, 20.4 m³/h, 2.64 W

Use this axial fan from RS PRO to cool and ventilate your instruments and components. It's designed to ensure your equipment is prevented from overheating and cabinets and enclosures are kept cool.


For safety in the event of a fire, the component is constructed from polybutylene terephthalate (PBT) thermoplastic, so it won't ignite when exposed to flames. As it's resistant to chemicals and stains, the product can also be easily wiped clean.


The axial fan is RoHS (Restriction of Hazardous Substances) compliant, which means it contains trace amounts of any harmful materials. Axial fans such as this one can be used in server racks to keep your hubs, routers and patch panels cool.

Features and Benefits

• DC operation


• Air flow of 20.4 m³/h


• Ball bearing type


• Dimensions of 40 (height) x 40 (width) x 28 mm (depth)


• Backward direction of curve


• Fan speed of 8800 rpm (rotations per minute)


• Maximum current of 200 mA


• Noise level of 37 dB


• Power consumption of 2.64 W


• Open collector sensor output type


• OD4028 series


• Auto restart


• Brushless


• Locked rotor protected


• Polarity protected


• Static pressure of 0.32 in H2O


• Supply voltage of 12 V DC


• Wire termination type

RS PRO Datasheet
