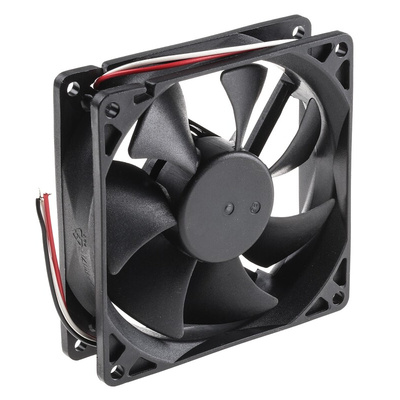

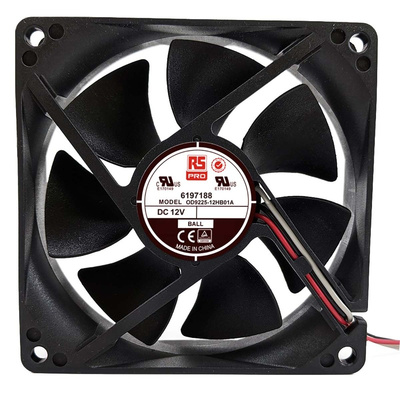

RS PRO Axial Fan, 12 V dc, DC Operation, 90m³/h, 3W, 240mA Max, 92.5 x 92.5 x 25mm, Вентилятор

RS PRO 12 V DC, DC Axial Fan, 92.5 x 92.5 x 25 mm, 90 m³/h, 3 W

Need a ventilation and cooling solution for your devices and appliances? This axial fan from RS PRO prevents the instruments in your cabinets and enclosures from overheating and ensures they stay cool.


The fan is made from PBT (polybutylene terephthalate) thermoplastic, which ensures the fan is durable and flame-resistant. The fan is easy to wipe clean as this material is also resistant to chemicals and stains.


The axial fan conforms to Restriction of Hazardous Substances (RoHS) requirements, meaning it contains only trace amounts of any harmful materials. Use this product in server racks to keep your patch panels, routers and hubs cool.

Features and Benefits

• DC operation


• Airflow of 90 m³/h


• Ball-bearing type


• Dimensions of 92.5 x 92.5 x 25 mm


• Backward direction of curve


• Fan speed of 2900 rpm (rotations per minute)


• Maximum current of 240 mA


• Noise level of 35 dB


• Power consumption of 3 W


• Open collector sensor output type


• Special features of auto restart, brushless, locked rotor protected and polarity protected


• Static pressure of 0.13 in/H2O


• Supply voltage of 12 V DC


• Wire termination type
