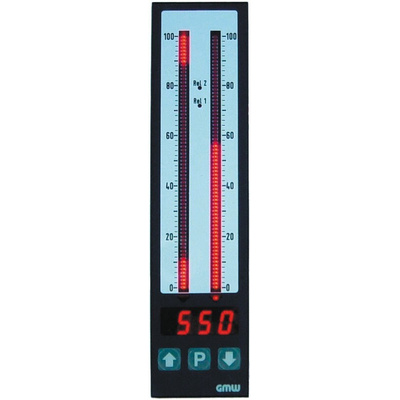

Bargraph Indicators
Simple at-a-glance indication, plus digital precision
Accurate 3-digit numeric readout
User programmable MIN/MAX limit values. The A1400 model has MIn/MAX with separate bargraph indication and the A1410 has MIN/MAX with LED indication
User selectable DC current or voltage input range
User programmable display range (3 keys)
Adjustable display brightness
Power supply electrically isolated from measuring inputs
Easy plug-in-screw-terminal connections
Digit display: from -999 to 999 (8mm)
Digit Accuracy: +/-0.1% of reading + 2 digits
Operating temperature: 0 to 50°C (storage: -20 to 70°C)
Front protection: IP65
Dimensions: A1400 - 144x36x127mm (cutout: 138x33mm)
A1410 - 96x24x126mm (cutout: 92x22.2mm)
A1400MF Multifunction Bargraph Indicator Data SheetA1400 - MF Light-Strip Indicator Manual
