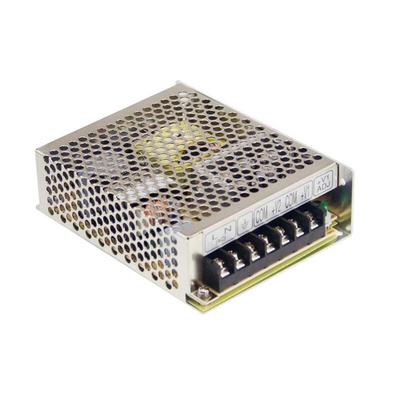

MEAN WELL Switching Power Supply, RS-75-12, 12V dc, 6A, 72W, 1 Output, 125 → 373 V dc, 88 → 264 V ac, Источник питания

Mean Well Power Switch Mode Power Supply

The Mean Well RS-75 series 72W single output AC to DC switch mode power supply has an output current rating of 6A at 12VDC. It has a universal input supply voltage rating from 88VAC to 264VAC and 125VDC to 373VDC.
Note:
De-rating 2% per °C above 50°C on all types except

RD50, 65, 125, RS-75-3.3 types de-rating 2% per °C above 45°C
RD85, RS-100-3.3, RS-150-3.3 and 5 de-rating 2% per °C above 40°C

Features and Benefits

high-efficiency up to 84.5%
Long life and high reliability
High power density
High operating temperature up to 70°C
Long life electrolytic capacitors 105°C
Easy installation
Screw terminals
Adjustable output voltage for single output types, 10.8V to 13.2V at 12V and 22V to 27.6V at 24V
Adjustable output voltage for dual output types on output 1, -5% to 10%
Dual outputs have a minimum load requirement
The total load must not exceed the rated output power
Cooling by free air convection
Withstands a 5G vibration test
Overload and overvoltage protection
Full load burn-in test

Certifications

EN 60950-1
UL 60950-1
TUV approved
CB approved
UL approved
EN 61000-3-2 (harmonic current)
EN 55022 class B (EMC)
EN55032 (CISPR32) class B
EN61000-3-2,-3
GB9254 class B
GB17625.1
EN55024
EN61000-6-1
Criteria A
