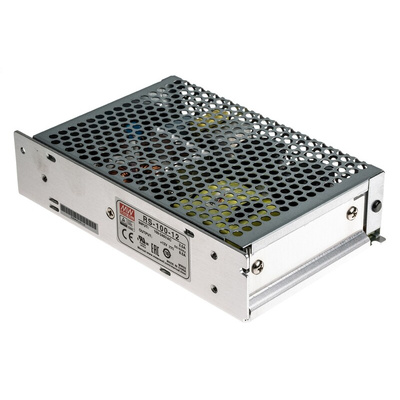

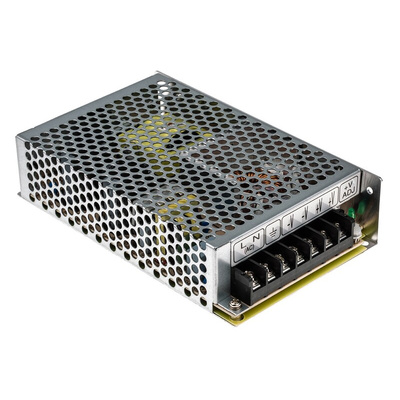

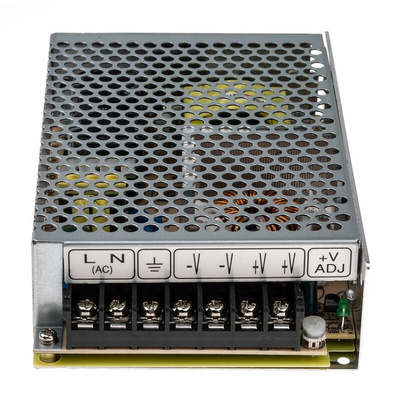

MEAN WELL Switching Power Supply, RS-100-12, 12V dc, 8.5A, 102W, 1 Output, 125 → 373 V dc, 88 → 264 V ac, Источник питания

Mean Well Power Switch Mode Power Supply

The Mean Well RS-100 series 102W single output AC to DC embedded switch mode power supply has an output current rating of 8.5A at 12VDC. It has a universal input supply voltage rating from 88VAC to 264VAC and 125VDC to 373VDC (withstands 300VAC surge for 5 seconds without damage).
Note:
De-rating 2% per °C above 50°C on all types except

RD50, 65, 125,RS-75-3.3 types de-rating 2% per °C above 45°C
RD85, RS-100-3.3, RS-150-3.3 and 5 de-rating 2% per °C above 40°C

Features and Benefits

high-efficiency up to 81%
Long life and high reliability
High power density
High operating temperature up to 70°C
Long life electrolytic capacitors 105°C
Easy installation
Screw terminals
Adjustable output voltage for dual output types on output 1, -5% to 10%
Dual outputs have a minimum load requirement
Full load burn -in test is 100%
The total load must not exceed the rated output power
Short circuit protection
Cooling by free air convection
Withstands a 5G vibration test
Overload and overvoltage protection
LED indicator for power ON

Certifications

EN60950
UL60950
UL approved
TUV approved
CB approved
EN 61000-3-2 (harmonic current)
EN 55022 class B (EMC)
UL60950-1
TUV EN60950-1

RS-100 Series specification sheet

Declaration Of Conformity
