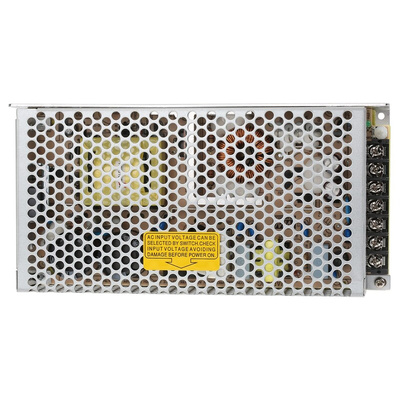

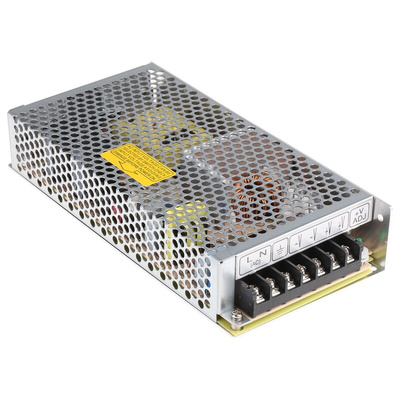

MEAN WELL Switching Power Supply, RS-150-24, 24V dc, 6.5A, 156W, 1 Output, 176 → 264 V ac, 248 → 373 V, Источник питания

Mean Well Power Switch Mode Power Supply

The Mean Well RS-150 series 156W single output AC to DC embedded switch mode power supply has an output current rating of 6.5A at 24VDC. It has a universal input supply voltage rating from 88VAC to 132VAC/176VAC to 264VAC (selected by the switch) and 248VDC to 373VDC (withstands 300VAC surge for 5 seconds without damage).
Note:
De-rating 2% per °C above 50°C on all types except

RD50, 65, 125, RS-75-3.3 types de-rating 2% per °C above 45°C
RD85, RS-100-3.3, RS-150-3.3 and 5 de-rating 2% per °C above 40°C

Features and Benefits

high-efficiency up to 86%
Long life and high reliability
High power density
High operating temperature up to 70°C
Long life electrolytic capacitors 105°C
Easy installation

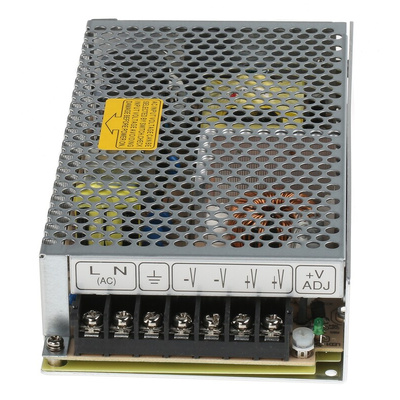

Screw terminals
Adjustable output voltage for dual output types on output 1, -5% to 10%
Dual outputs have a minimum load requirement
The total load must not exceed the rated output power
Short circuit protection
Cooling by free air convection
Withstands a 5G vibration test
Overload and overvoltage protection

Certifications

EN60950
UL60950
UL approved
TUV approved
CB approved
EN 61000-3-2 (harmonic current)
EN 55022 class B (EMC)
UL60950-1
TUV EN60950-1
