RS PRO Type J Thermocouple 600mm Length, 6mm Diameter → +700°C, Термопара

Type J and K probes and KNE Terminal head assembly – Push in process

200, 400 and 600mm versions
6 mm stainless steel sheath
Insulated tip junction
Aluminium IP67 terminal head
Push in process via probe glands and flange
Screw lead with retaining chain
Compensating terminal block is included
Cable entry via M20 cable gland

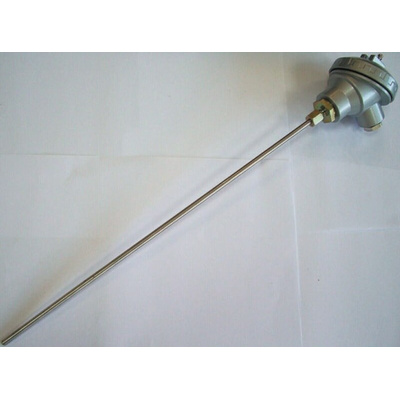

RS PRO Type J Thermocouple 600 mm Length, 6 mm Diameter, +700°C

Accurately measure changes in temperature with this Type J thermocouple from RS PRO. You're guaranteed quick readings thanks to its five-second response time.


The thermocouple is designed for long-lasting performance thanks to its 316-grade stainless steel construction. This material protects the component from rust and corrosion. It's also highly resistant to heat, so the thermocouple can measure temperatures of up to +700°C. This thermocouple has a measuring point made from a positive iron conductor and a negative constantan (copper–nickel) one. As these alloys are dissimilar, they create voltage in response to a change in temperature. This results in accurate measurement of temperatures.


The product has a terminal head made of aluminium with an Ingress Protection (IP) rating of IP67. This means that it's both dust-tight and waterproof, so you can use it outdoors or in harsh industrial environments.

Features and Benefits

• Maximum temperature sensed of +700ºC


• Probe diameter of 6 mm


• Probe length of 600 mm


• Probe material of 316L Stainless Steel


• Response time of 5 s


• RoHS (Restriction of Hazardous Substances) compliant


• Connection head termination type


• Type J thermocouple
