RS PRO 79dB Flange Mount Continuous Internal Magnetic Buzzer Component, 32 x 17 x 15.55mm, 8V Min, 16V dc Max, Зуммер

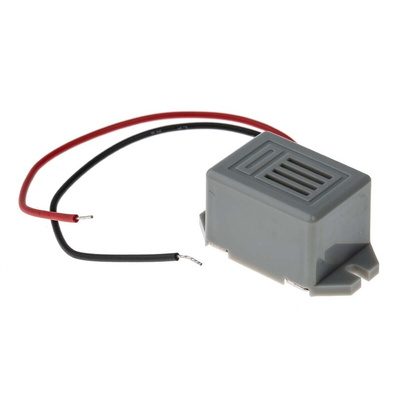

RS PRO 16 V DC, Flange Mount Buzzer, 79 dB Continuous

For a safe and simple way to generate sounds from electronic equipment, look to this piezo buzzer from RS PRO. It can quickly and easily be wired to release a continuous tone of up to 79 dB, with a resonant frequency of 2.8 kHz.

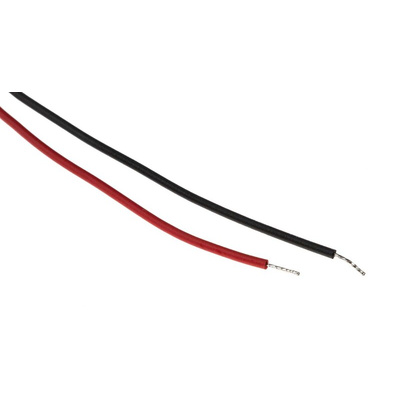

This handy component can be mounted directly on a printed circuit board (PCB), as well as having internal circuitry. For quick connections, it has flying leads. What's more, its ABS (acrylonitrile butadiene styrene) housing makes it highly shock- and chemical-resistant. This piezo buzzer generates sounds with a much bigger pressure level compared to magnetic buzzers. Finally, it can function with a relatively low current of 30 mA.

This buzzer safe for use in a temperature range between -20°C and +60°C. It's been extensively tested to meet RS PRO standards. The buzzer is used for alarms, as well as telephone dial tones and toy or game sounds.

Features and Benefits

• Continuous piezo buzzer
• Sound level of 79 dB
• Resonant frequency of 2.8 kHz
• Internal drive
• Flange mounting
• Dimensions of 32 mm x 17 mm x 15.55 mm
• Supply current of 30 mA
• Diameter of 26 mm
• Height of 15.55 mm
• Minimum operating temperature of -20°C
• Maximum operating temperature of +60°C
• Minimum supply voltage of 8 V (DC)
• Maximum supply voltage of 16 V (DC)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Solid state flying lead buzzer,8-16Vdc Data Sheet
