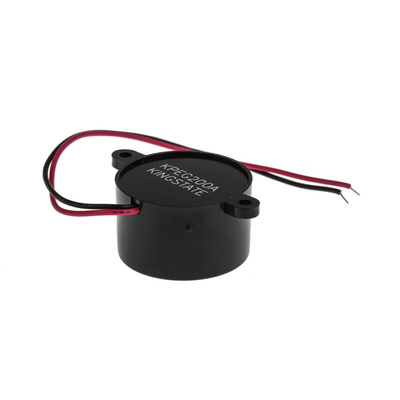

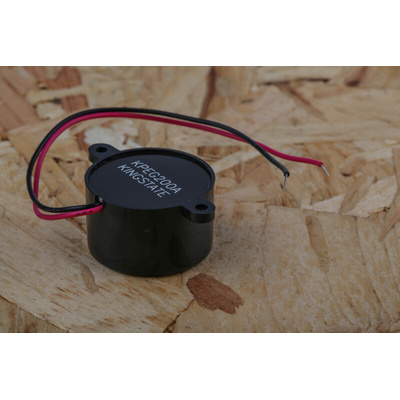

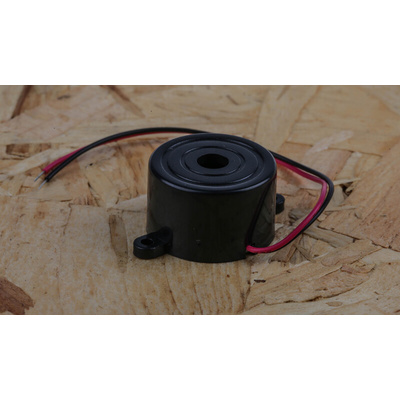

RS PRO 73dB Panel Mount Continuous Internal Piezo Buzzer, 23.8 (Dia.) x 14.5mm, 3V dc Min, 20V dc Max

6221499
Производитель: RS PRO
Цена за шт.
1423.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO 20 V DC, Panel Mount Buzzer, 73 dB Continuous

Safely and simply generate sounds from your electronic equipment with this piezo buzzer from RS PRO. It has a resonant frequency of 2.8 kHz, plus you can easily wire it to release a continuous tone of up to 73 dB.

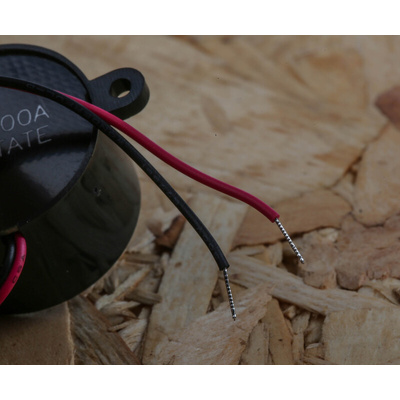

This buzzer can function with a low current of 14 mA. It features internal circuitry and can be fitted directly onto a printed circuit board (PCB). Its ABS (acrylonitrile butadiene styrene) housing makes it highly shock- and chemical-resistant, and it boasts flying leads for quick connections. This piezo buzzer generates sounds with a much larger pressure level when you compare it to magnetic buzzers.

This handy component has been extensively tested to meet the strictest RS PRO safety and quality standards. It's safe for use in a temperature range between -30°C and +85°C. It's used for alarms, as well as telephone dial tones and toy or game sounds.

Features and Benefits

• Continuous piezo buzzer
• Sound level of 73 dB
• Resonant frequency of 2.8 kHz
• Internal drive
• Flange mounting
• Dimensions of 23.8 (Dia) x 14.5 mm (H) x 34 mm (L)
• Supply current of 14 mA
• Minimum operating temperature of -30°C
• Maximum operating temperature of +85°C
• Minimum supply voltage of 3 V (DC)
• Maximum supply voltage of 20 V (DC)
• Minimum frequency of 2600 Hz
• Maximum frequency of 3.6 kHz

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfFlying lead buzzer,3-20Vdc,flange mount Data Sheet
pdfSpecification for approval
pdfRS PRO Datasheet
Высота:
14.5мм
Диаметр:
23.8мм
Длина:
34мм
Максимальная частота:
3.6кГц
Максимальное напряжение питания:
20В пост. тока
Минимальная частота:
2600Гц
Минимальное напряжение питания:
3В пост. тока
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-30°C
Размеры:
23.8 (диаметр) x 14.5мм
Тип монтажа:
Крепление на панель
Тип привода:
Внутренний
Тип сигнала:
Continuous
Ток питания:
14мА
Уровень звучания:
73дБ
