RS PRO 92dB Panel Mount Continuous Internal Buzzer, 14.8 (Dia.) x 16mm, 3V dc Min, 20V dc Max

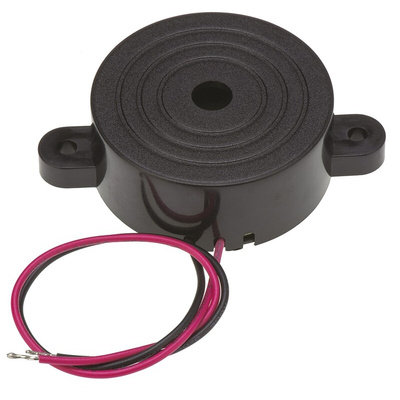

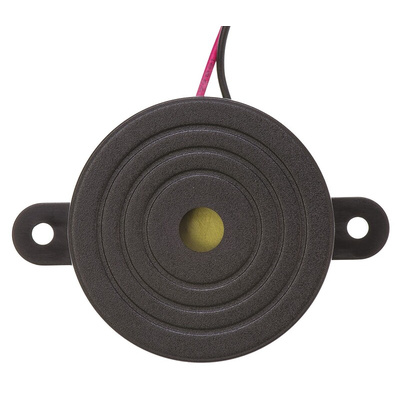

RS PRO 92 dB, Panel Mount Continuous Internal Buzzer

Emit sounds from your electronic equipment simply and safely with this piezo buzzer from RS PRO. It can easily be wired up to generate a continuous tone of up to 92 dB.

This buzzer's internal circuitry allows it to be fitted directly onto a printed circuit board (PCB). It boasts flying leads for quick connections, while its ABS (acrylonitrile butadiene styrene) outer construction makes it very resistant to shock and chemicals. This piezo buzzer generates sounds with a much larger pressure level in comparison to magnetic buzzers. It can also operate with a relatively low current of 12 mA.

This component has been thoroughly tested to meet RS PRO standards. It can safely be utilised in a temperature range between -30°C and +85°C. You're likely to find it in alarms and warning devices, as well as telephone dial tones and toy or game sounds.

Features and Benefits

• Continuous piezo buzzer
• Sound level of 92 dB
• Internal drive
• Panel mounting
• Dimensions of 41.8 mm (Dia.) x 16 mm (H) x 50 mm (L)
• Supply current of 12 mA
• Minimum operating temperature of -30°C
• Maximum operating temperature of +85°C
• Minimum supply voltage of 3 V (DC)
• Maximum supply voltage of 20 V (DC)
• Frequency range of 2300 Hz to 3.3 kHz

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
