RS PRO 92dB Panel Mount Continuous, Fast Pulse Internal Buzzer, 36.5 (Dia.) x 23.5mm, 6V dc Min, 28V dc Max

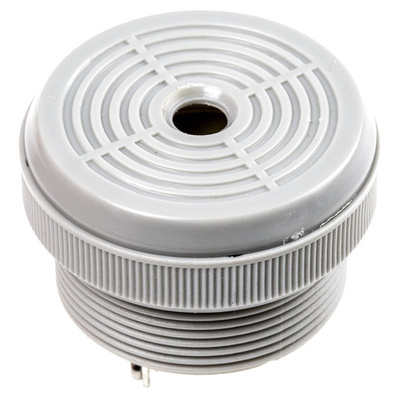

RS PRO 92dB, Panel Mount Continuous, Fast Pulse Internal Buzzer

Part of our RS PRO range, these high-quality internal buzzers are a versatile choice. These continuous, fast-pulse buzzers come in a space-saving unit and deliver a clear tone.

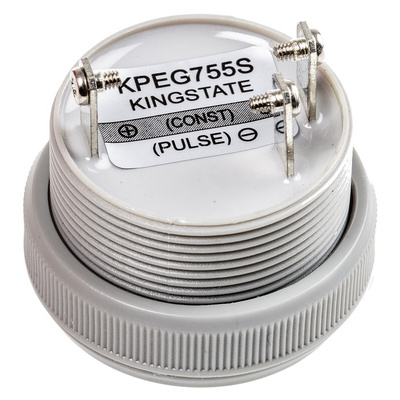

These buzzers draw a 16 mA supply current, producing a continuous and fast-pulsing 92 dB tone – that's loud enough to cut through loud environmental noise. They're compatible with most consumer appliances and have an operating range of 6 V DC and 28 V DC. They come in a panel-mounted, compact design that measures just 42.5 mm. Moreover, the buzzers feature FASTON terminals, which make wires easy to connect and crimp onto them without the need to solder.

They conform to the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards, which means they've been protected from harmful electrostatic discharges during handling and packaging. You'll find buzzers like these in everyday devices, including doorbells and microwaves.

Features and Benefits

• Piezo buzzer with a continuous, fast-pulsed tone
• Panel mounting
• Minimum supply voltage of 6 V DC
• Maximum supply voltage of 28 V DC
• 92 dB sound level
• Internal drive
• Diameter of 36.5 mm
• Height of 23.5 mm
• Operating temperature range of -30°C to +85°C
• Supply current of 16 mA
• Minimum frequency of 3100 Hz
• Maximum frequency of 4.1 kHz

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
