RS PRO 85dB Panel Mount Slow Pulse Internal Buzzer, 42.5 x 42mm, 60V ac/dc Min, 250V ac/dc Max

6221562
Производитель: RS PRO
Цена за шт.
7023.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

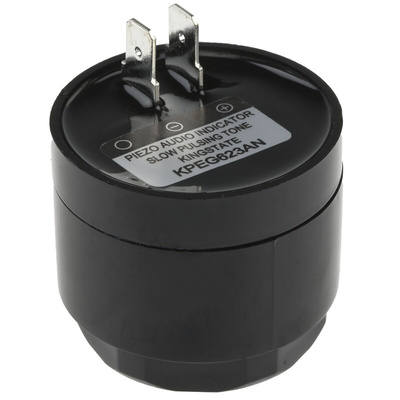

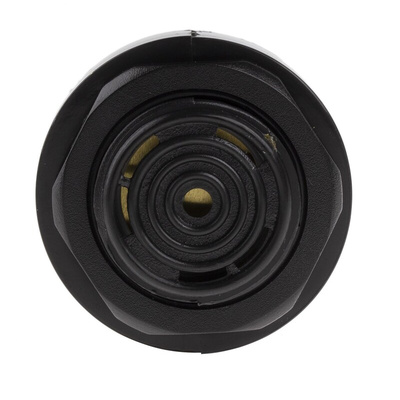

RS PRO 85dB, Panel-mount Slow-pulse Internal Buzzer

These powerful internal buzzers combine a high voltage range and clear sound in a space-saving design. A wide operating temperature range of -30°C to +85°C makes them useful in manufacturing environments that experience temperature variations.

The buzzers operate between 60 V DC and 250 V DC, while needing only a 15 mA supply current. This means they're less likely to malfunction when connected to higher-voltage appliances. They produce a slow pulsing 85 dB tone which is easily heard without being shrill. Measuring in at only 42.5 mm in diameter, the panel mount units are simple to install. FASTON terminals mean wires can be crimped on without the need to solder.

As part of our RS PRO range, these internal buzzers have been thoroughly tested for performance and reliability. They're well-suited for warning devices and alarms in environments with high background noise, such as factories.

Features and Benefits

• Piezo buzzer with a slow pulsed tone
• Panel mounting
• Minimum supply voltage of 60 V DC
• Maximum supply voltage of 250 V DC
• 85 dB sound level
• Internal drive
• Diameter of 42.5 mm
• Height of 42 mm
• Operating temperature range of -30°C to +85°C
• Supply current of 15 mA
• Minimum frequency of 2300 Hz
• Maximum frequency of 3.3 kHz
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS Pro Datasheet
pdfRS PRO Datasheet
Высота:
42мм
Диаметр:
42.5мм
Максимальная частота:
3.3кГц
Максимальное напряжение питания:
250В перем./пост. тока
Минимальная частота:
2300Гц
Минимальное напряжение питания:
60В перем./пост. тока
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-30°C
Размеры:
42.5 x 42мм
Тип монтажа:
Крепление на панель
Тип привода:
Внутренний
Тип сигнала:
Slow Pulse
Ток питания:
15мА
Уровень звучания:
85дБ
