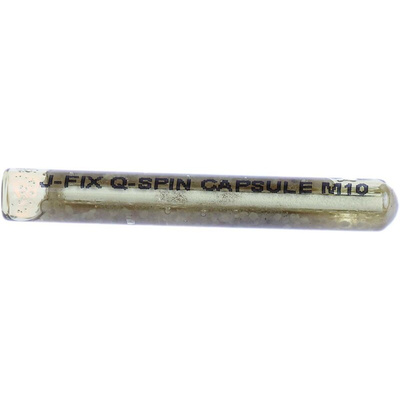

RS PRO M10 Capsule Anchor Resin Anchor, 130mm Stud Length

RS PRO M10 Capsule Anchor Resin Anchor, 130 mm Stud Length

Part of our tried-and-tested RS PRO range, this M10 capsule anchor stud resin anchor is a chemical fixing used in a wide range of construction settings. It's attached to masonry and concrete using a resin-based adhesive and is typically found in higher-load applications.

Featuring a thread size of M10 and stud length of 130 mm, you can use it with other spin-in studs to offer expansion-free anchorage in concrete. The studs provide a sturdier anchor when bonding materials together and perform best when spaced closely to one another.

The hole diameter of this product is 12 mm, with a maximum fixture thickness of 25 mm and minimum hole depth of 90 mm. Washer, nut and hexagonal setting tools are supplied with both the steel recess hex head studs and stainless steel studs. You'll find this anchor used to fix pipework brackets, machinery and lighting columns safely and securely.

Features and Benefits

• Capsule anchor stud type
• M10 thread size
• Stud length of 130 mm
• Hole diameter of 12 mm
• Maximum fixture thickness of 25 mm
• Minimum hole depth of 90 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
