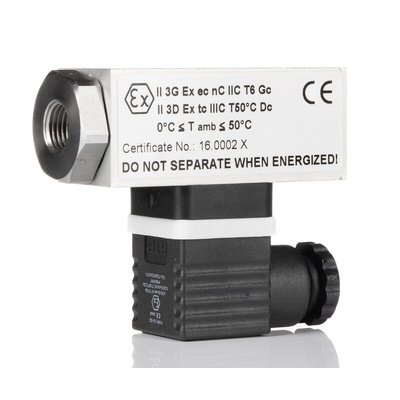

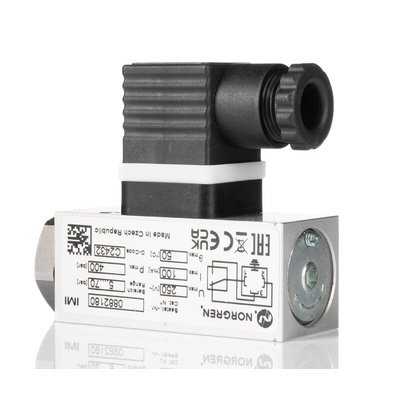

0882180, IMI Norgren Pressure Switch, G 1/4 5bar to 70 bar

Norgren 18D Electro-Mechanical Vacuum Switch

Norgren 18D series electro-mechanical pneumatic pressure switches are designed to produce an electric signal when a certain adjustable vacuum level is reached. The 18D pressure switches are particularly suited when an electrical signal is needed when a certain vacuum level is reached, for safety, for starting a cycle or for checking the cup grip.

Features and Benefits

• Robust construction

• High cycle life

• DIN EN 175301-803 Form A Electrical connection

• Protection rating: IP65

• Gold plated contacts

• Intrinsically safe operation

• Vibration resistant to 15G

• Aluminium body

Certificate No.

(stock no. 622-3647 only) TÜV (technical inspection agency) approval:
EX 8 03 01 11122 007

Group and Category

(Stock no. 622-3647 only): For EX applications according to ATEX 100:
Zone 2 category ATEX 3G (gases)
Zone 22 category ATEX 3D (dust)

Warning

Observe switching range. Do not subject switch to maximum allowable pressure during normal operation. Short pressure peaks must not exceed this value.

Pressure Switches

Pressure switches that allow microswitch operation once a pre-set pressure is reached. K and K3 Series incorporate a mechanical stop providing over-pressure protection for the spring and microswitch. Electrical connections for all models to DIN 43650.
