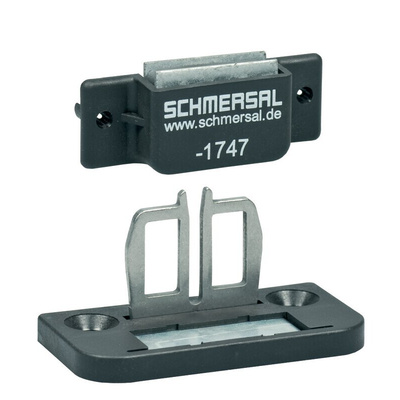

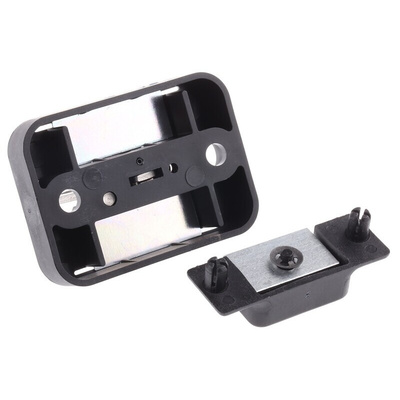

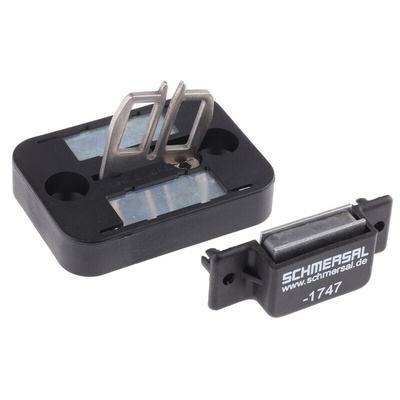

AZ 15/16-B2-1747, Schmersal Magnetic Actuator for Use with AZ 15 Safety Switch

Schmersal Actuator, Interlock, For Use With AZ 15 Safety Switch- AZ 15/16-B2-1747

This Schmersal actuator serves as the central redirecting element in a safety switch. It's designed for use with AZ 15 switches for ease of creating a complete safety switch system. It turns the power supply to a piece of machinery off to prevent overloads or excessive wear, improving workplace safety and productivity. The component slots into the housing and screws in securely, so it will stay firmly in place even in the event of heavy vibrations. Thanks to its light weight of 16g, it will place minimal strain on your switch.

Features & Benefits

• IP67 (ingress protection) rating for protection against dust and submersion in 1m of water for up to 30 minutes
• Interlock shape prevents damage caused by incorrect locking
• Minimum actuating radius of 150mm for use in areas with limited space

Applications

• Vehicle manufacturing
• Printing industry
• Packaging conveyors
• Articulated robots
• Programmable automation

What types of safety guards is this actuator suitable for?

This actuator is suitable for use with sliding and removable safety guards, making it a versatile choice.
