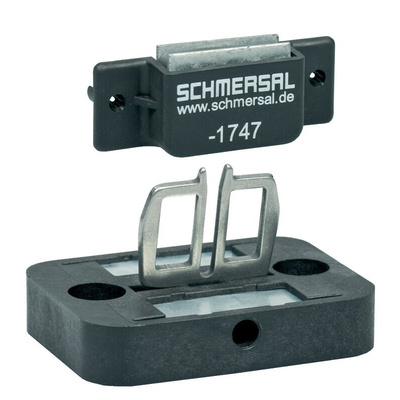

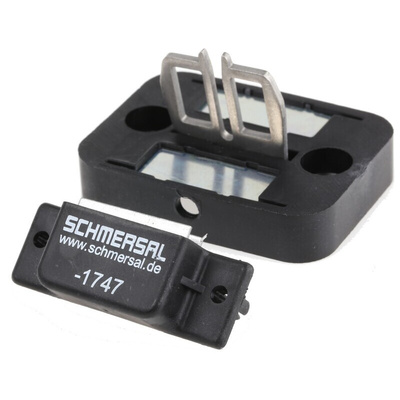

AZ15/16-B3-1747, Schmersal Magnetic Actuator for Use with AZ 15 Safety Switch

Schmersal Actuator, For Use with AZ 15 Safety Switch, IP67 - AZ15/16-B3-1747

Enhance the safety of your industrial machines with this actuator from Schmersal. An actuator is the key switching element in a safety switch and turns off power to a piece of machinery to help prevent machine damage or shock hazards. The switch detects when a supply current is reaching an unsafe level and triggers the actuator to flick the switch. This actuator is designed for use with AZ 15 safety switches on hinged safety guards, making it simple to create a complete set-up for your industrial machinery

Features & Benefits

• IP67 (ingress protection) rating means it's protected against dust and submersion in 1m of water for up to 30mins
• Interlock shape protects the unit from damage caused by incorrect mating

Applications

• Food and beverage industry
• Pharmaceuticals
• Automotive industry
• Mining and quarrying
• Factory automation

How do I install the actuator?

Ensure that the actuator is placed in the correct position, then screw it into place with one-way screws to prevent tampering. Be sure not to alter the insertion depth of the actuator when riveting or welding it in place.

Interlock Switch

AZ 15/AZ 16 Mounting Instructions

Explosion Protection Catalogue

Machine Guarding and Safety Range Overview

Datasheet - AZ15/16-B3-1747
