AZ/AZM 415-B1, Schmersal Standard Actuator for Use with AZ 415 Safety Switch

AZ415 & AZ415-33, Multiple Actuating Functions

AZ415: Two switches with different actuating functions in one enclosure
AZ415-33: Three switches with different actuating functions in one enclosure
Adjustable ball latch to 500N allows guard to be held closed when unlocked
IP67 protection

Note

Actuator sold separately

Standards

IEC/EN60947-5-1, BG-GS-ET-15

Approvals

BG

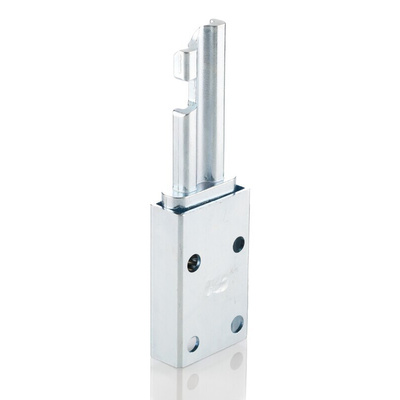

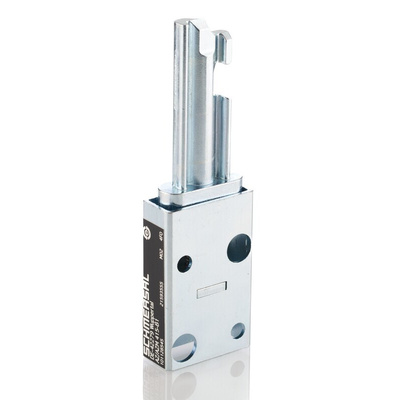

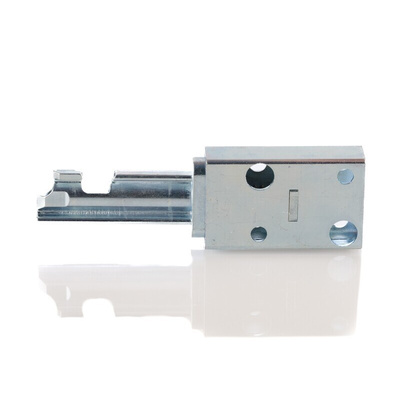

Schmersal Standard Actuator for Safety Switch, 135g, 500N Clamping Force - AZ 415 Series - AZ/AZM 415-B1

Safeguard your industrial equipment from unsafe access with this robust actuator from Schmersal. This component is designed for use with AZ 415 safety switches to prevent you from opening a sliding guard door when a machine is running. It also prevents the machine from running when the guard door is open for enhanced machine and operator safety.
Thanks to its clamping force of 500N, this actuator has a secure grip on the switch to prevent the forceful opening of the doors. It's also made of stainless steel, which offers durability and corrosion resistance for long-lasting performance in harsh environments.

Features & Benefits

• Light weight of 135g to reduce strain on equipment
• Spring return action for simple locking and unlocking
• Meets IEC/EN 60947-5-1 (International Electrotechnical Commission/European Norm) international electrical safety standards

Applications

• Industrial bottle labelling
• Packing machines
• Hazardous area guard doors

How do I maintain this actuator?

You can maintain this actuator by carrying out regular dust removal and lubrication. This will help ensure that it moves in and out of the switch smoothly for more efficient performance.
