AZ 17/170-B5, Schmersal Angled Toggle Actuator for Use with AZ 17 Safety Switch

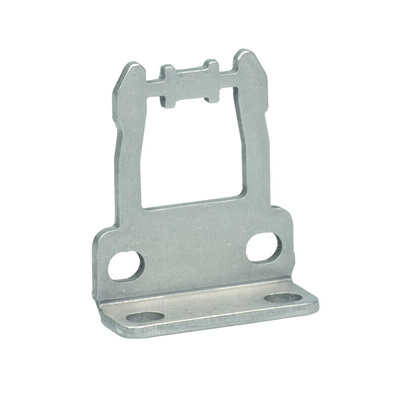

Schmersal Angled Actuator, 140mm, For Use with AZ 17 Safety Switch - AZ 17/170-B5

Control your AZ 17 safety switch with this angled actuator from Schmersal. Its stainless steel construction makes it durable and corrosion-resistant for use in demanding environments. The tamperproof screws ensure a secure installation and maintain safety by preventing alterations to the switch. You'll find an actuator like this one particularly suitable for use in operations involving sliding doors.

Features & Benefits

• Light weight of just 20g to reduce bulk and strain on your equipment
• Meets RoHS (Restriction of Hazardous Substances) standards, meaning it contains no more than minimal levels of any harmful materials
• Meets British and EU electrostatic control standards to enhance safety in your workplace

Applications

• Shipping and packaging systems
• Machine engineering
• Pharmaceutical manufacturing

How do I install the actuator and safety switch?

To ensure proper functioning, the axis of the door should be 13mm above and in a parallel plane to the top surface of the safety switch. You can use screws to secure it in place. When welding or riveting the switch, be sure not to alter the insertion depth of the actuator.
