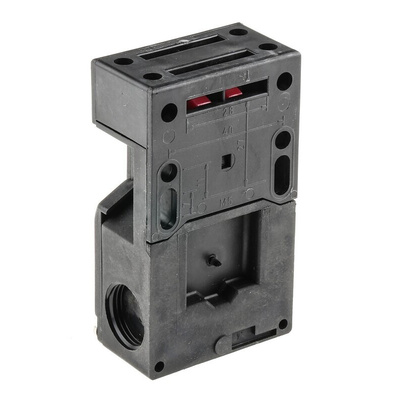

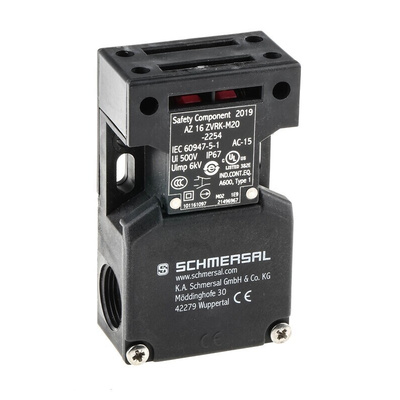

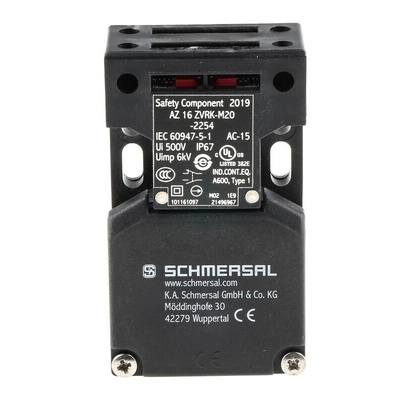

AZ16ZVRK-M20-2254, Schmersal AZ16 Safety Interlock Switch, 1NC/1NO, Keyed, Glass Fibre Reinforced Thermoplastic, Выключатель

Schmersal Safety Interlock Switch, Key Lock, NO/NC - AZ16 Series - AZ16ZVRK-M20-2254

Protect operators and moveable machine guards with this safety interlock switch from Schmersal. It automatically senses when operational safety is at risk and almost instantly terminates a hazardous situation. The device's contacts are galvanically separated to prevent stray current flow, so enhanced levels of safety are assured. Its highly robust thermoplastic body provides a long service life and requires very little maintenance. The unit is supplied with tamper-proof screws to prevent it from being removed, while its multiple coding levels mean it can't be adjusted by anyone without authority.

Features and Benefits

• Suitable to use in dirty or dusty conditions
• Housing has an IP67 (ingress protection) rating, indicating it's waterproof and completely protected from dust and dirt
• Large wiring compartment for ease of installation
• Easily distinguished slotted holes for adjustment and circular holes for location

Application Information

• Robotics
• Mining and minerals processing
• Power generation
• Materials handling

How do I wire this safety switch?

Schmersal provides contact labelling in the wiring compartment of the switch. For the cable entry, suitable cable glands with an appropriate degree of protection must be used. After wiring, dust and soiling should be removed from the wiring compartment.
