BNS 33-11Z-2M, Schmersal BNS33 Series Magnetic Safety Switch, 100V ac/dc, Plastic Housing, NO/NC, Cable, Выключатель

Schmersal Magnetic Safety Switch, NO/NC, 100V AC/DC - BNS33 Series - BNS 33-11Z-2M

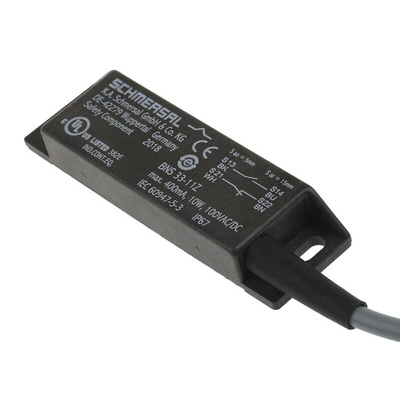

Keep your industrial panels and doors safe with this Schmersal non-contact safety switch. It'll make one electrical connection and break two connections when it senses that a coded magnetic actuator is in range. The coding prevents it from being bypassed using a standard magnet. The device has a robust black thermoplastic enclosure and can be mounted in a concealed position. It can be used to switch voltages of up to 100V AC/DC at up to 0.25A. The matching actuator (198-7863) is available separately.

Features and Benefits

• IP67 (ingress protection) rating means it's designed to withstand harsh conditions and can be submerged in liquid for up to 30 minutes
• Operating temperature range of -25°C to +70°C for use in a range of tough environments

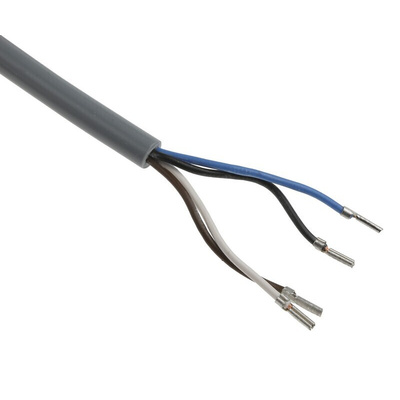

• Supplied with a two-metre PVC (polyvinyl chloride) covered cable for simple connection
• Installation is made easier as it's insensitive to transverse misalignment

Application Information

• Machine access panels
• Assembly lines
• Food and beverage processing

Can this switch be used in explosive atmospheres?

This switch isn't designed for use in explosive atmospheres. The Schmersal BNS33 ATEX magnetic non-contact safety switch (698-8763) is recommended in this case.

Machine Guarding and Safety Range Overview
