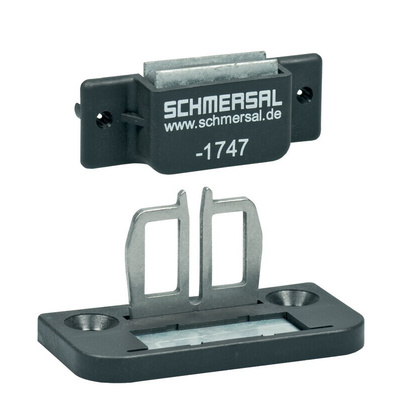

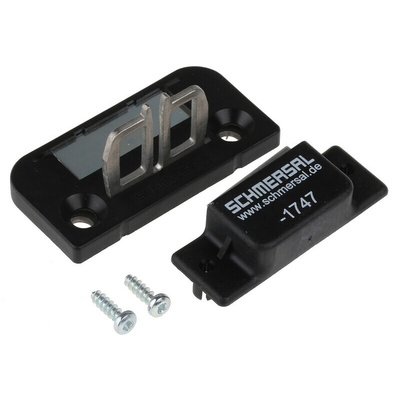

AZ15/16-B1-1747, Schmersal Standard Actuator for Use with AZ 15 Safety Switch

Schmersal Standard Actuator for AZ 15 Safety Switch - AZ15/16-B1-1747

Use this Schmersal standard actuator to activate or deactivate your AZ 15 safety switch. It works with a magnetic latch that opens and closes connections. The compatible safety switch is double-insulated to safeguard against electrical shocks and enables you to effectively operate components such as automated doors. Actuators like this one are used with safety switches in a range of industrial environments to prevent injuries and enhance workplace safety.

Features & Benefits

• Retrofitting option lets you install the actuator after building constructions are completed for greater flexibility
• Compliance with RoHS (Restriction of Hazardous Substances) requirements assures you the product contains only negligible amounts of any harmful materials

Applications

• Machinery guard doors
• Access control
• Pharmaceutical clean rooms

How do I install this actuator?

The actuator should be fitted in the correct position and secured in place with one-way screws to prevent tampering. When welding or riveting the actuator in place, be sure not to alter the insertion depth of the actuator.

What type of safety guards is this actuator compatible with?

This actuator is specifically designed for use with sliding and removable safety guards.

AZ 15/AZ 16 Mounting Instructions

Explosion Protection Catalogue

Machine Guarding and Safety Range Overview

Datasheet - AZ15/16-B1-1747

Instruction Sheet - AZ15/16-B1-1747
