TVS 410SK-11/11U, Schmersal TVS 410 Safety Hinge Switch, 2NO/2NC, M12, Переключатель

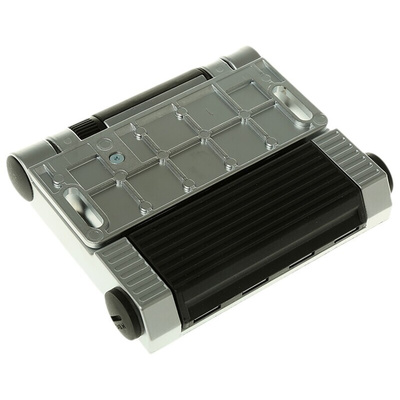

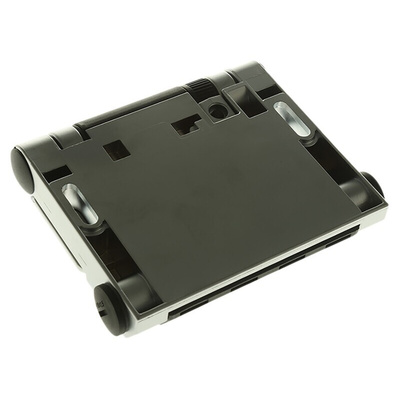

Schmersal Safety Hinge Switch

The Schmersal TVS410 series safety hinge switch has a 2NO/2NC normal state configuration. The conduit entry is M16 and size of cable entries is M16x1.5. It has a contact current rating of 4A at a voltage rating of 230VAC and 24VDC.

Note:
Stock nos. 623-3284 and 623-3278 are not supplied with a power lead. Standard hinge sold separately see stock no. 623-3290

Features and Benefits

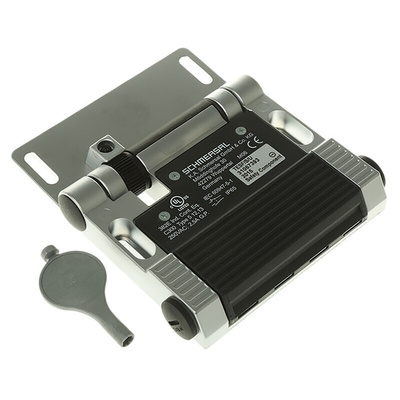

180° opening angle, with adjustable switching angle (K410 tool included with switch)
Positive break angle between 5° and 8°
Matching (non-safety) hinge available
Metal enclosure is oil and petroleum resistant
Adjustable switching angle
Opening angle is 180°
For left or right hinged doors
Mountable on the inside and the outside of the safety guard
Screw terminals, cage clamps or connector

Applications

Packing machines
Printing and paper machines
Tool machines
Metal industry
Electrical industry
Special machine construction
Measurement technology, process engineering, testing and laboratory equipment
Plastics processing machinery
Enclosures/profile systems
Food processing machinery

Certifications

IEC/EN60947-5-1
BG-GS-ET-15
BG certified
IP65 rated
CE certified
cULus approved
CCC certified
