TVS 410ST2-11/11U, Schmersal TVS 410 Safety Hinge Switch, 2NO/2NC, Переключатель

Schmersal Safety Hinge Switch, 4A Current Rating, 24V DC Voltage Rating - TVS 410 Series - TVS 410ST2-11/11U

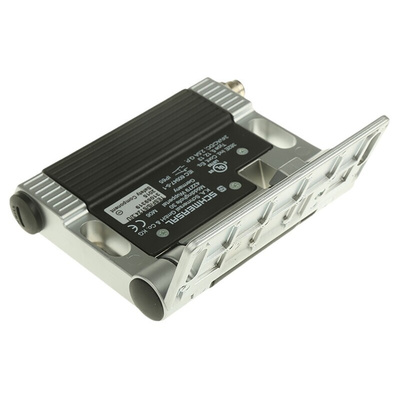

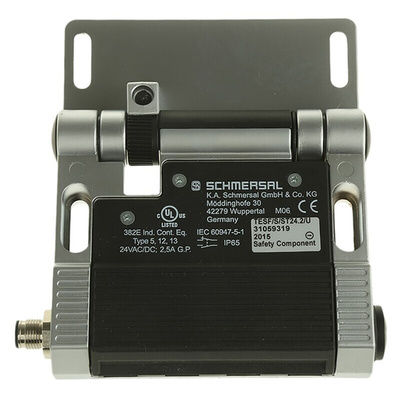

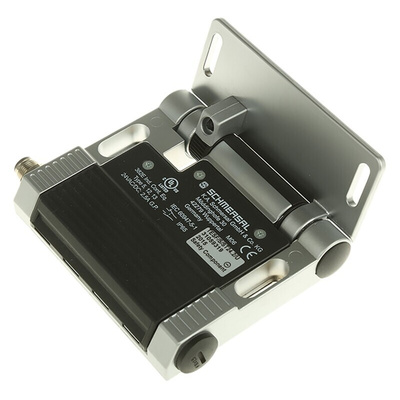

Use this safety hinge switch from Schmersal to effectively regulate the opening of gates or guard doors. It keeps doors closed when dangerous processes are in operation, helping to prevent injury to personnel. A wide opening angle of 180° allows easy access to your equipment when it's not in use. For versatility, you can mount the switch on the left or right side of the door to suit your setup. Its silver-nickel contacts are highly conductive and resistant to corrosion to ensure a reliable connection.

Features & Benefits

• Die-cast alloy material for resistance to corrosion and impact
• Complies with IEC/EN 60947-5-1 safety standards for low-voltage switchgear
• IP65 rating indicates complete protection against dust and low-pressure water jets
• Long mechanical lifespan of more than one million operations for long-lasting use

Applications

• Food and beverage industry
• Medical imaging applications
• Manufacturing and packaging operations

In which temperatures can I use this safety hinge switch?

This safety hinge switch has a wide operating temperature range between -25°C and +65°C. This means it's suitable for use in heavy-duty environments.
