BEXCS11005DPFDC024AB1A1R/A, e2s BExCS110-05 Series Amber Sounder Beacon, 24 V dc, IP66, IP67, Surface Mount, 117dB at 1 Metre

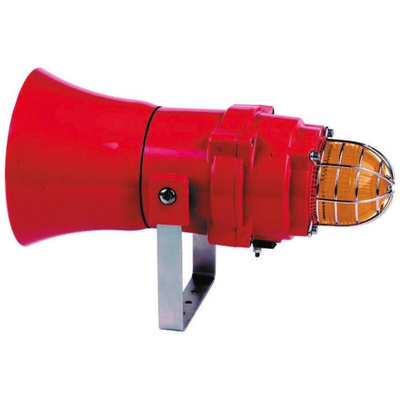

e2s Sounder Beacon

The e2s DC flashy sounder beacon is high tech equipment with an amber lens. This sounder beacon has a sound level output up to 110dB (A) at 1m with a choice of 32 alarm tones and 3 remotely selectable stages. The supply voltage rating is 24VDC. The alarm horn and Xenon beacon can be connected from a single power supply for simultaneous operations or from separate supplies for independent operation.

Features and Benefits

Rated for zone 1 and 2, gas group IIB
Good resistance to humidity and salt spray environments
Can be connected from a single supply for simultaneous, or separate supplies for independent operation of the sounder and beacon
Manufactured from corrosion proof, marine grade copper-free LM6 aluminium with a chromate and powder coat finish
Operating temperature ranges between -500C and 700C

Certifications

ATEX / IECEx / FM: II 2G Ex d IIB T4
GOST-R: 1ExdIIBT4
IP66/67 rated

BExCS110-05 Instruction Manual

BExCS110-05 Datasheet
