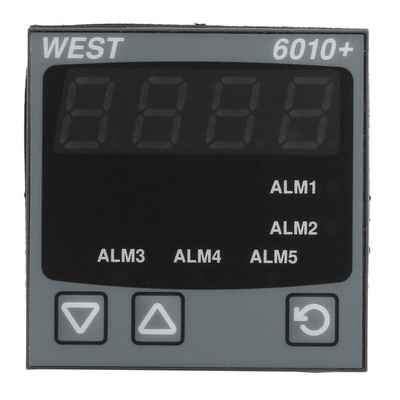

P6010-2100-000, West Instruments 6010 LED Process Indicator for RTD, Thermocouples, 45mm x 45mm, Многофункциональный измеритель

West Instruments Process Indicator

The West Instruments process indicator is a digital panel meter with high contrast and high visibility display. The indicator is designed for optimal ease of use in a wide variety of temperature and process-related applications. It provides a jumperless configuration, plug-in output boards and an efficient PC configurator for a quick and simple setup. Besides, the plug-in modules allow a PV retransmission or a transmitter power supply and up to 4 alarm relays (latching or non-latching).

Features and Benefits

Inputs is thermocouple, RTD and DC linear signals
Output is SPST and SPDT relays for single and dual alarm
Up to 4 outputs
Plug-in output modules for SSR driver, TRIAC, relay and linear outputs that are easily field changeable
Self-recognition of option boards that promote simple, error free set-up
Optional alarm relays are selectable as latching or non-latching
PC configurator with easy to use “wizard” suits both novice and experienced users
Modbus and ASCII communication
10V SSR driver output allows drive of up to 3 typical SSR/SCR inputs
Multi-point scaling and Tare features included as standard
4-digit 10mm LED display
Cut-out height of 45mm, width of 45mm and depth of 110mm
Operating temperature ranges between 0°C and 55°C

Certifications

CE certified
cRUus certified
IP66 rated
IP20 rated (Behind panel protection)
EN50082
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
