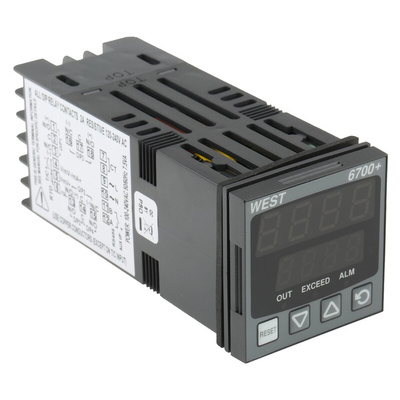

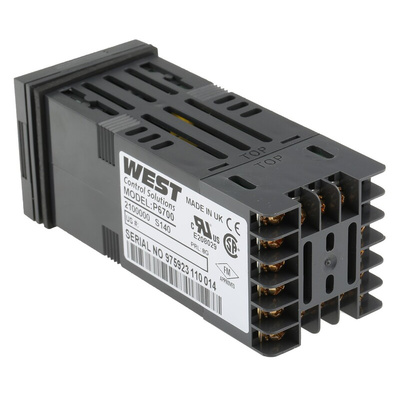

P6700-2100-000, West Instruments P6700 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 1 Output Relay, 100 → 240 V ac Supply Voltage, Регулятор температуры

West Instruments Temperature Controller

The West Instruments P6700 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm(1/16 DIN) device. It has a thermocouple input type and a latching limit relay (fixed). It provides a latched relay output that is activated when process value either exceeds or falls below the pre-set limit level. The output provides a fail-safe cut-off that has to be reset before the process can continue. The LED indication shows when limits have been exceeded and when the relay is latched out. A full range of universal sensor input options allows the 6700 plus controller to provide a valuable control 'watchdog' for most systems.

Features and Benefits

Red upper and lower display colour
5A latching limit relay as standard
Auto-hardware detect/set-up
Backward compatible panel cut-out, housing and terminal wiring capability
Configuration via PC/customisable operator menu
Easy to use HMI
Jumper-less configuration
Modbus communications
Optional 10V SSR driver output
Optional digital input and remote reset
Process alarms
Red upper and lower display colour

Certifications

CE certified
FM approval
IP20 rated
IP66 rated
UL approved
