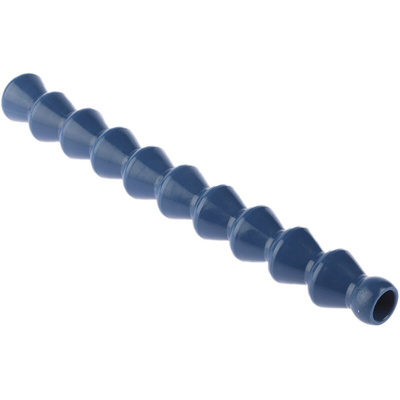

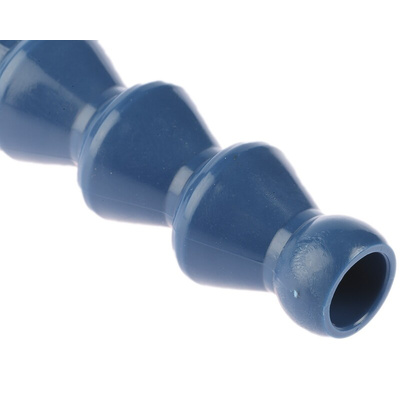

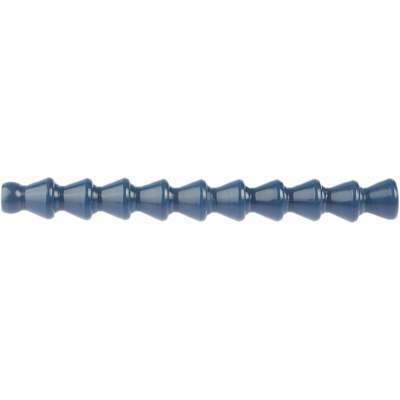

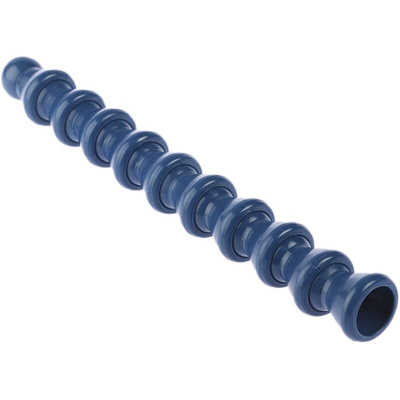

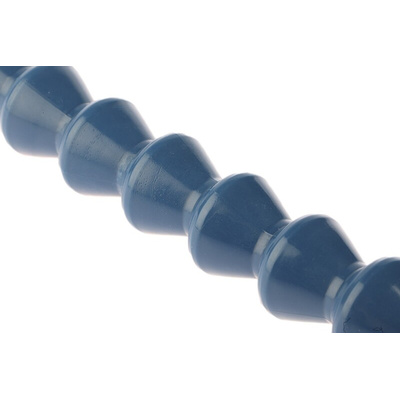

RS PRO 1/4in Hose Kit

RS PRO 1/4 in Hose Kit

Need to cool down your grinding, milling or turning equipment? This flexible coolant hose kit from RS PRO lets you feed coolant onto machine tools to prevent them overheating.

The kit contains 20 segments of coolant pipe, each 11 inches in length. The 1/4 in diameter modular hose accessories are made from polyoxymethylene, which is also known as acetal, polyacetal and polyformaldehyde. This material delivers strength and durability, as well as heat resistance. The hose has an internal diameter of 6.7 mm and an external diameter of 16.3 mm. It will accommodate a flow of 16 m3 per hour and accept a maximum pressure of 0.19 pascals (Pa) for liquids or 0.34 Pa for air. Its minimum diameter at full bend is 50 mm.

This hose is commonly used in industrial manufacturing applications. As part of the RS PRO range, it's been thoroughly tested, so you can be confident of its quality.

Features and Benefits

• Flexible coolant hose kit
• Contains 20 pieces
• Made from durable, heat-resistant polyacetal
• Maximum flow of 16 m3 per hour
• Internal diameter of 6.7 mm
• External diameter of 16.3 mm
• Weight of 35 g
• Width of 120 mm
• Height of 20 mm
• Length of 230 mm
• Maximum pressure (liquid) of 0.19 Pa
• Maximum pressure (air) of 0.35 Pa
• Blue colour (Pantone 3025C)
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
