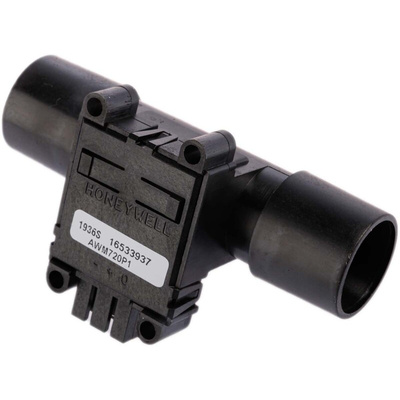

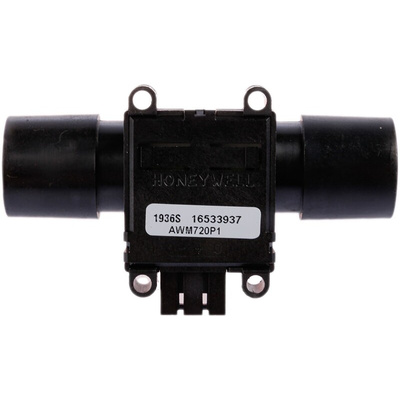

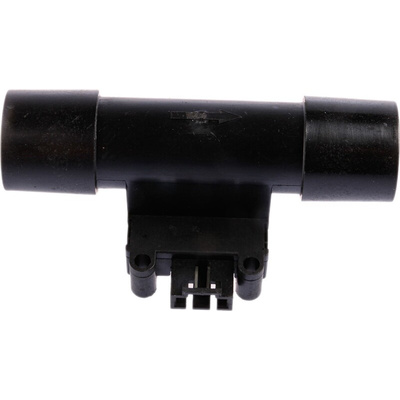

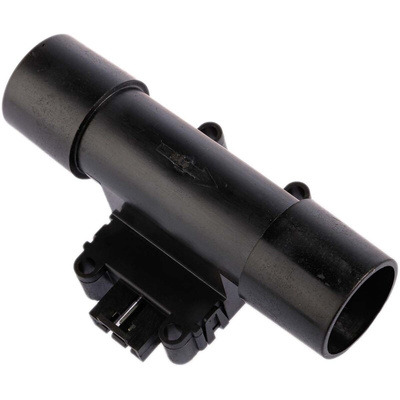

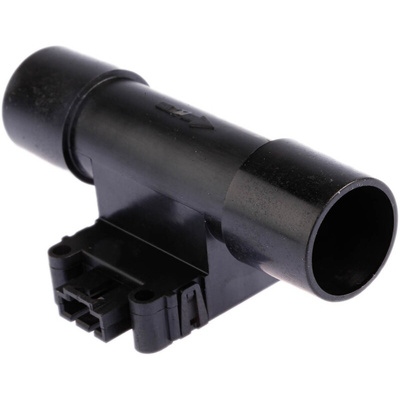

AWM720P1, Honeywell Compensated/Amplified Airflow Sensor, 200 SLPM, AWM700 Series

Compensated/Amplified Airflow Sensor AWM700 Series

The AWM700 Series, Compensated/Amplified Airflow Sensors provide inline flow measurement with a specially designed bypass flow housing. These sensors can measure flows as high as 300 SLPM while inducing a typical pressure drop of 1 in H2O.
The AWM700 has a high flow range capability in a small package, and a 6 ms response time. These sensors require a 10 V dc supply, but consume only 60 mW of power.
The compact plastic package withstands overpressures of 1720 mbar | 172 kPa | 25 psi without compromising performance. The snap-in AMP-compatible connector provides reliable connection.
The AWM700 Series provides a combination of time-proven reliability, high accuracy, and precision operating characteristics. This inherent accuracy over life reduces need for recalibration. AWM700 sensor circuitry performs amplification and temperature compensation.
The AWM720P1 and AWM730B5 were developed primarily for the medical ventilation market and meet the high performance requirements of many medical and analytical instrumentation applications.

Features and Benefits

• Flow tubes for ranges up to 300 SLPM: Provides low-pressure drop in the customers application
• Highly stable null and full scale: Does not require recalibration in most applications
• Compact package design: Occupies less space in the customers enclosure, potentially reducing production costs; enclosure size can also be reduced for easier fit into space constrained applications
• Low hysteresis and repeatability errors (less than 0.35% of reading): Provides better system accuracy
• Enhanced response flow time of 6 ms: Captures full flow event
• Low power consumption: Allows for use in portable devices and battery-powered applications

Product Application Information

MEDICAL
• Oxygen concentrators and conservers
• Respirators and ventilators
• Nebulisers
• Continuous positive airway pressure (CPAP)
• Anaesthesia machines
INDUSTRIAL
• Mass flow controllers
• Telecommunication systems
• Environmental climate controls
• Fuel cell controls
• Process gas control welding equipment and lasers
