FLUKE-718 1G, Fluke 718 -68.9mbar to 68.9mbar Pressure Calibrator, Калибратор давления

Fluke 718 Pressure Calibrators

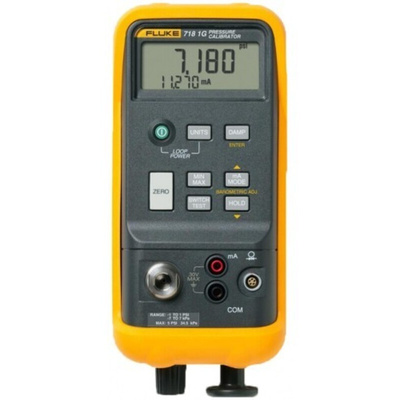

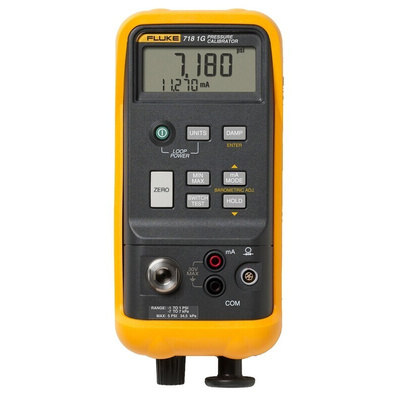

The Fluke 718 Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges, and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.

Fluke 718 series include:
718 1G – 623-9901
718 30G – 334-9011
718 300G – 623-9917

Features and Benefits

• Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
• Integrated pump is easily cleaned when accidently exposed to fluids that reduces cost of ownership and repairs and enables servicing the pump in the field
• Error % calculation for quicker pass/fail decision making in the field
• Best in class mA accuracy of 0.015% for better measurement confidence and workload coverage
• Min/Max/Hold to capture changing measurements
• Switch test feature for quicker and more accurate pressure switch testing
1G:- Range: -1 to 1psi, -68.9 mbar to 68.9 mbar, -6.89 to 6.89 kPa)
30G:- Range: -12 psi to 30 psi, (-850 mbar to 2 bar, -85 to 206.84 kPa)
300G:- Range -12 psi to 300 psi, (-850 mbar to 20 bar, -85 to 2068.42 kPa)
• For measuring overpressure and vacuum with an internal sensor
• Suitable for non-corrosive gases
• Pressure / vacuum hand pump with fine adjustment and relief valve (helps to protect the pump)
• Select from numerous technical units for the pressure
• Simultaneous measurement of pressure and current for simple P/I or I/P testing
• 24 V loop supply
• Zero and damp functions
• Test functions for push button switch: set, reset, dead zone
• New 1 and 300 PSI pressure ranges mean fewer extra tools required
• Rugged can withstand 1 m drop test
• 9 V battery,
• Dimensions 216 x 94 x 66 mm
• Weight 992 g

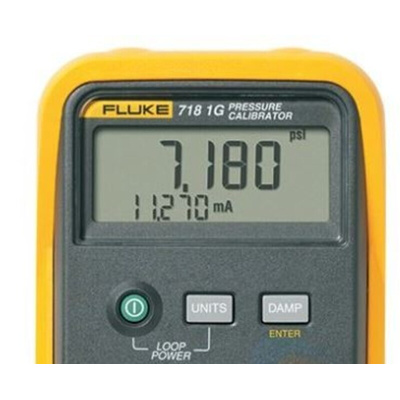

• LCD display

Standards

CSA C22.2 no. 1010.1: 1992, IEC 61010, CAT I 30V

Supplied with

Fluke 718, holster, TL75 test leads, AC72 crocodile clips, two 9 V batteries, instruction manual

FLUKE Pressure Calibrator, 24V Loop Supply, Suitable For Non-Corrosive Gases - 718 Series - FLUKE-718 1G

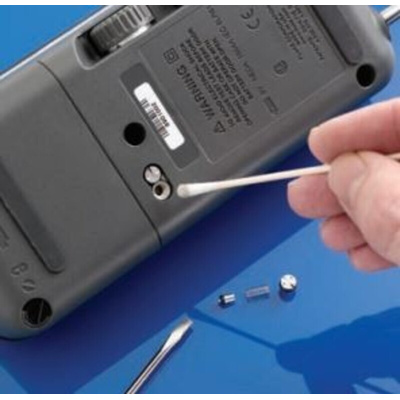

Feeling the stress of getting accurate readings? Get your hands on this calibrator from FLUKE to verify the pressure levels of instruments such as gauges and switches. It measures current with 0.05% accuracy and 0.001mbar resolution, so you get precise calibration. As the unit has a battery life of 4 to 20 hours, depending on use, it's a long-lasting solution that will see you through the working day. The built-in pump is quick to clean if it comes into contact with liquids, since you only need a cotton swab and a slotted screwdriver.

• Compact dimensions of 216 (L) x 94 (W) x 66mm (H) to fit neatly in your hand
• Drop tested to 1m to ensure durability against impact
• LCD display with five digits for simple monitoring at a glance

Applications

• Oil and gas production
• Pneumatic systems
• Research and development

Is this pressure calibrator suitable for industrial environments?

Yes. As it has a broad operating temperature range between -10°C and +55°C, you can use it reliably in harsh conditions.

How much does this calibrator weigh?

It weighs just 992g, so it's easy to handle for long periods of time without strain.
