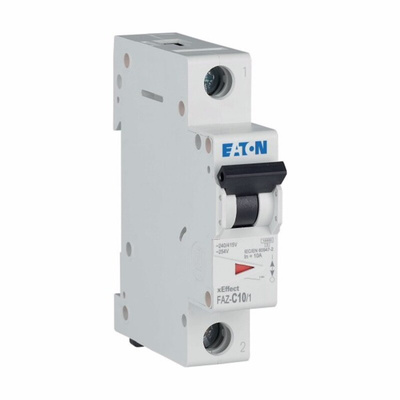

278557 FAZ-C10/1, Eaton xEffect MCB, 1P, 10A Curve C, 230V AC, 60V DC, 10 kA Breaking Capacity

Eaton MCB, 230V AC Voltage Rating, Type C Tripping Characteristics - FAZ Series - 278557 FAZ-C10/1

Use this thermal-magnetic MCB from Eaton to protect electrical circuits from overcurrent that can damage equipment and cause fires. It's easy to see the position of the contacts thanks to the clearly visible toggle switches on the front of the unit. As it has type-C tripping characteristics, so breaks at 5 to 10 times its 10A rating, this is a suitable option for commercial and industrial use. Single-pole circuit breakers like this are suitable for low-power appliances such as lighting outlets.

Features & Benefits

• Straightforward DIN rail installation, saving you time and effort
• Compact size of 80 (L) x 17.5 (W) x 71mm (D) for high-density packing
• Breaking capacity of 10kA and switching capacity of 15kA indicates a high level of current can be interrupted without damage to the circuit breaker
• Finger-proof for user safety

Does this MCB have a long lifespan?

Yes. This MCB has an operating lifespan of over 10,000 cycles, so you can expect long-term performance.

Can this circuit breaker withstand extreme heat?

An operating temperature range of -25°C to +75°C indicates that this unit can withstand extremes of temperature.

Note

Eaton formerly known as Moeller

Standards

IEC 898; BS/EN60-898; EN50 022/DIN46277-3 (BS5584)
