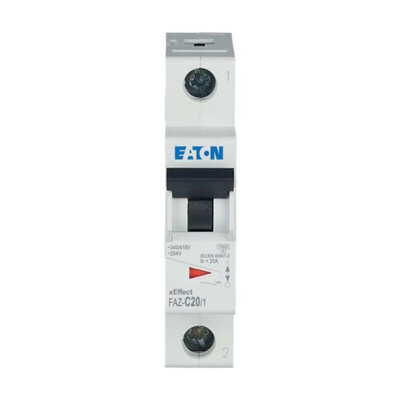

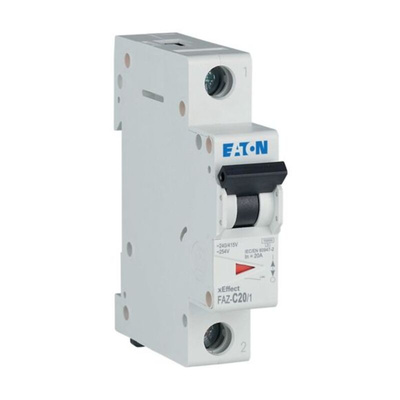

278562 FAZ-C20/1, Eaton xEffect MCB, 1P, 20A Curve C, 230V AC, 10 kA Breaking Capacity

Eaton MCB, 440V Rated Insulation Voltage, Type-C Tripping Characteristics - xEffect Series - 278562 FAZ-C20/1

With this MCB from Eaton as part of your setup, you can stop power faults in their tracks. The single-pole design has type-C tripping characteristics, so it shuts down circuits when it receives five to ten times the rated current of 20A. Thanks to a breaking capacity of 10kA at 230V AC, the thermal-magnetic unit can handle high inrush currents without breaking a sweat. This makes it a reliable choice for high-load applications such as industrial motors and electrical circuit boards. For fast and easy mounting, you can snap this MCB onto a standard top-hat DIN rail.

Features & Benefits

• IP40 protection rating when fitted indicates it's protected from tools and fingers for safe handling
• Performs in harsh conditions, thanks to an operating temperature range between -25°C and +75°C
• Front switch toggle gives a clear visual indicator of the contact position
• Ultra-slim, compact dimensions of 75.5 (H) x 17.7 (W) x 80mm (D) let it slot into tight spaces

How much does this MCB weigh?

This breaker weighs just 111g, so you can rest assured that it won't strain your circuits.

How long will the breaker last?

A mechanical lifespan of 10,000 switching cycles means you can trust this circuit breaker to stay the course.

Note

Eaton formerly known as Moeller

Standards

IEC/EN60947-2
