278873 FAZ-C16/3, Eaton xEffect MCB, 3P, 16A Curve C, 400V AC, 10 kA Breaking Capacity

Eaton Miniature Circuit Breakers (MCBs) - FAZ Series

The FAZ series of miniature circuit breakers (MCBs) from Eatons xEffect range has a current limiting design providing fast short-circuit interruption that reduces the let-through electrical energy and overload currents that can damage the circuit.

Ideally suited to control circuits and electrical distribution boards the FAZ series of MCBs offer a wide range of diverse protection characteristics, protecting your electrical equipment against overload damage. For additional safety, the MCB breaker cannot be defeated by holding the handle in the ON position, these MCBs are also finger proof and have a trip-free mechanism.

These MCBs have both a thermal and electromagnetic release, with rated currents of 0.16 A up to 63 A and a switching capacity of 15kA or 10kA depending on the device type.

The FAZ series includes miniature circuit breakers, interlocks, busbars and snap-on accessories including auxiliaries and tripping modules.

Features and Benefits

• Thermal-magnetic overcurrent protection
• Power to the miniature circuit breakers can be fed from the line or load side
• Clear indication of contact position via front switch toggle
• Easy installation on DIN rail. MCB module width of only 17.5 mm (per pole)
• Six levels of short-circuit protection, categorized by Type B, C, D, K, S and Z curves
• Small modular width of the device and accessories saves space in the panel or equipment, which can lead to cost savings
• Available in single pole up to 4 pole
• Dual rating for IEC 60947-2 standard
• MCB Module widths: 1P 17.5mm, 2P 35mm and 3P 52.5mm

Standards

IEC 898; BS/EN60-898; EN50 022/DIN46277-3 (BS5584).
FAZ-C*/* & FAZ-S*/* = IEC/EN60947-2

IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similar installations. In the UK these are traditionally known as miniature circuit breakers (MCBs), moulded case circuit breakers
(MCCBs) and also air circuit breakers (ACBs).

Standards

IEC 898; BS/EN60-898; EN50 022/DIN46277-3 (BS5584).
FAZ-C*/* & FAZ-S*/* = IEC/EN60947-2

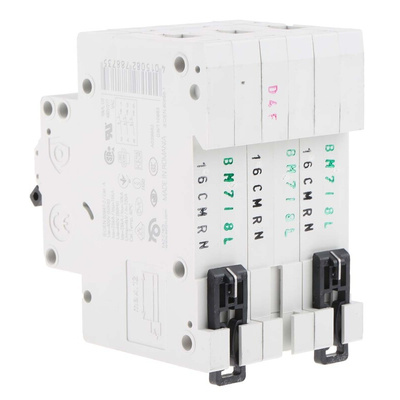

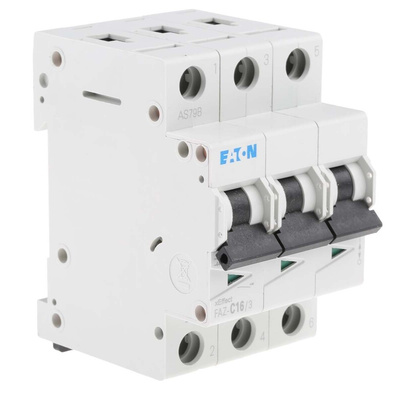

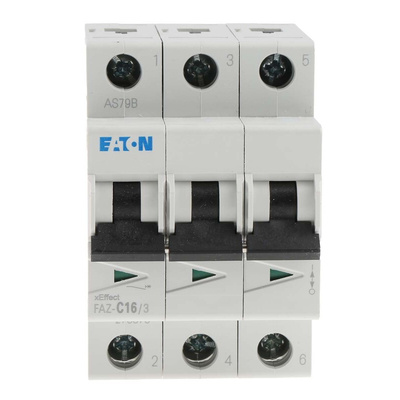

Eaton 3-Pole MCB, 16 A Current Rating, C Curve - FAZ Series - 278873 FAZ-C16/3

Features & Benefits

• Contact position is quick and easy to visually identify, thanks to its front toggle switch
• High capacity option, as it trips at 5 to 10 times its rated current of 16A
• Snaps onto a DIN rail for straightforward installation
• Compact size of 85 (L) x 73 (H) x 74mm (D) for high-density packing

What causes overcurrent?

Overcurrent is caused by a short circuit, arc or ground fault in an electrical circuit. These faults often occur as a result of a fire or accidental damage to equipment or cable insulation.

Note

Eaton formerly known as Moeller

Standards

IEC/EN60947-2

FAZ-C16-3-6240434 Datasheet

Instruction Sheet - FAZ Series
