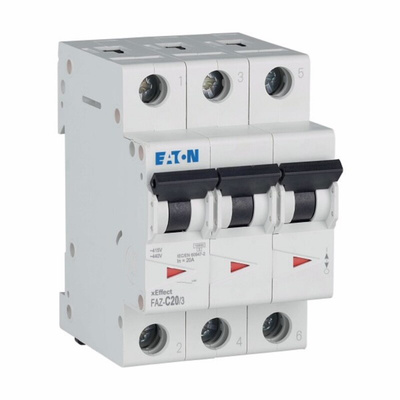

278874 FAZ-C20/3, Eaton xEffect MCB, 3P, 20A Curve C, 400V AC, 60V DC, 10 kA Breaking Capacity

Eaton MCB, 3 Poles, DIN Rail Mount - FAZ Series - 278874 FAZ-C20/3

Use this MCB from Eaton to prevent overload current from damaging machinery. It has type-C tripping characteristics, meaning that it cuts power at 5 to 10 times its rated current, making it suitable for inductive loads such as fluorescent lighting. Its durable thermoplastic enclosure is resistant to corrosion for reliable performance in harsh environments. Thanks to compact dimensions of 80 (L) x 52.5 (W) x 74mm (D), this unit takes up minimal space in busy setups. You'll find it typically used in manufacturing and on construction sites.

Features & Benefits

• Mechanical durability of 100,000 cycles assures you of long-term performance
• High breaking capacity of 10kA to handle sudden current spikes without suffering damage
• Current rating of 20A for use in high-current applications
• IP20 rating, so it's finger-safe and protected from objects larger than 12mm

How do I mount this MCB?

The MCB is designed to be mounted onto a DIN rail. This process is simple and doesn't need tools, saving time and effort.

What's the lifespan of this MCB?

This MCB has a lifespan of over 10,000 operating cycles, so you can rest assured that it will stand the test of time.

Note

Eaton formerly known as Moeller

Standards

IEC/EN60947-2

Datasheet - Eaton FAZ-C20/3

Instruction Sheet - Circuit Breakers

Line Drawing - 278874 FAZ-C20/3
