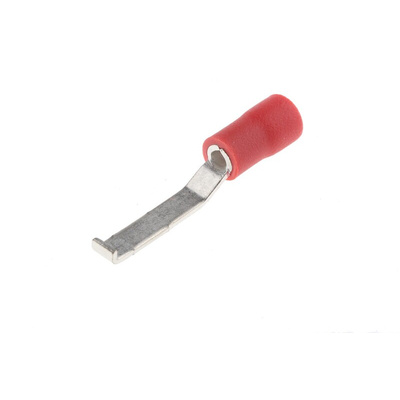

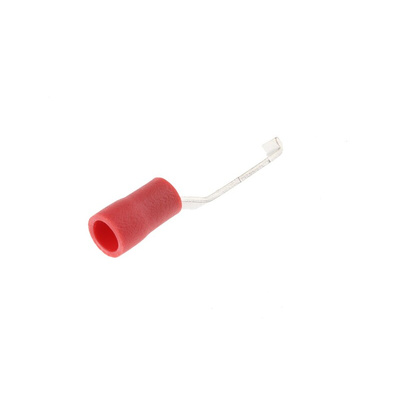

RS PRO Hooked Insulated Crimp Blade Terminal 16.8mm Blade Length, 0.5mm² to 1.5mm², 22AWG to 16AWG, Red

RS PRO Hooked Insulated Crimp Blade Terminal 16.8 mm Blade Length, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, Red

These hook blade terminals from RS PRO are capable of ending the connection of a range of different electrical installations, including lights and other household fixtures. With a copper contact point and tin contact plating, these are reliable terminals with a secure electrical connection.
The funnel entry style guarantees total insertion of the conductor into the terminal barrel, keeping it tightly in place and eliminating the risk of a loose connection. The terminal is gas-tight to protect the metal fixture against corrosion. This means no oxygen or moisture will be able to seep through to cause rust that can damage your connection.
For ease of assembly, these terminals can be fitted to the connection end without soldering and come preinsulated with vinyl that protects the wire from vibrations. This results in a strong and robust connection joint.

Features and Benefits

• Blade length of 16.8 mm
• Blade thickness of 0.75 mm
• Blade width of 3 mm
• Red colour
• Copper contact material
• Tin contact plating
• Male gender
• Hooked
• Inner diameter of 4 mm
• Insulated insulation
• Vinyl insulation material
• Maximum wire size of 16 AWG (American Wire Gauge)
• Maximum wire size of 1.5 mm²
• Minimum wire size of 22 AWG (American Wire Gauge)
• Minimum wire size of 0.5 mm²
• Overall length of 27.2 mm
• Unshrouded

Approvals

UL (E125401)
