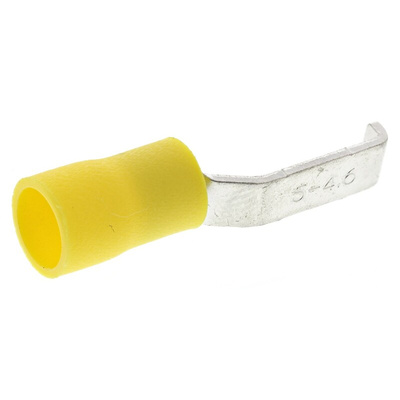

RS PRO Hooked Insulated Crimp Blade Terminal 17.2mm Blade Length, 4mm² to 6mm², 12AWG to 10AWG, Yellow

RS PRO Insulated Crimp Hook Blade Terminals - Vinyl

RS PRO range of insulated crimp hook blade terminals made with copper contacts and tin plating. These connectors have vinyl insulates with a sturdy design, for optimum convenience. Being available in various colours, there is a suitable version for your application. All models are highly reliable and of excellent quality.
For ease of assembly, these terminals can be fitted to the connection end without soldering and come preinstalled with vinyl that protects the wire from vibrations. This results in a strong and robust connection joint.

Features & Benefits

• Gender: Male


• Insulation: Insulated


• Shrouded: Unshrouded


• Insulation Material: Vinyl


• Various colours available


• Contact Material: Copper


• Contact Plating: Tin

Hook Blade Colour Code

• Red 0.5 - 1.5 mm²


• Blue 1.5 - 2.5 mm²


• Yellow 4.0 - 6.0 mm²

Note

Blade lengths, Red and Blue 16.8mm, Yellow 17.2mm

Approvals

UL recognised component

Approvals

UL (E125401)
