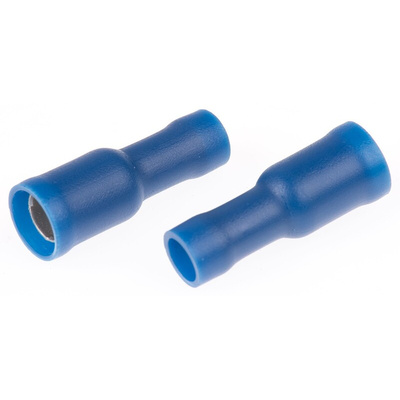

RS PRO Insulated Female Crimp Bullet Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 5mm Bullet diameter, Blue

RS PRO Insulated Female Crimp Bullet Connector, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, 5 mm Bullet Diameter, Blue

This RS PRO crimp terminal bullet connector can be used to terminate stranded or solid wire electrical connections without the need for soldering. Moisture and oxygen are kept out of the connection thanks to its air-tight design.


After the wires have been pushed in, the bullet crimp snaps into position, making installation straightforward and ensuring a secure join. The connector is made of highly conductive tin-plated copper for dependable electrical conductivity. The vinyl insulation also protects your connection from mechanical damage.


The blue insulation colour makes it easy to colour-code your wires for greater ease of organisation and identification. This type of connector is used in automation, recording studios and theatres.

Features and Benefits

• Bullet diameter of 5 mm


• Blue colour


• Brass contact material


• Tin contact plating


• Female gender


• Insulated


• Vinyl insulation material


• Maximum wire size of 14 AWG (American Wire Gauge)


• Minimum wire size of 16 AWG (American Wire Gauge)


• Maximum wire size of 2.5 mm²


• Minimum wire size of 1.5 mm²


• Overall length of 23.3 mm

Small Pack Size

Per Unit, RS stock no: 624-1263

Large Pack Size

RS stock no: 270-7600

Dimensional Drawing

RS Pro Datasheet
