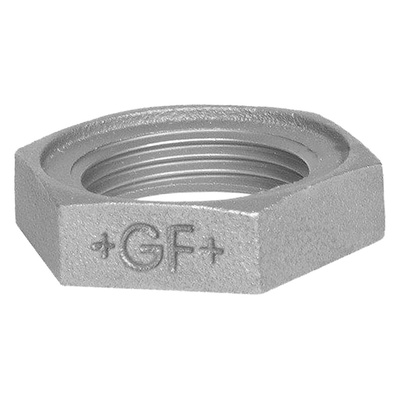

FIGURE 312_770312105, Georg Fischer Iron Backnut, Black Oxide, 3/4 in BSPP, 10mm

6245580
Номер производителя: FIGURE 312_770312105 Производитель: Georg Fischer
Цена за шт. (норма упаковки 10 шт)
142.40 руб. *

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Back Nut - Recessed - BSPP

This popular brand of backnuts are highly durable and have great temperature resistance and therefore can be used safely in a very broad field of applications.

Note

intermediate pressure rating at temperature between 120°C and 300°C can be obtained by linear interpolation; hot dip galvanised fittings should not be used below -10°C.

Malleable Fittings - Plugs & Nuts Malleable Fittings – Plugs & Nuts

George Fischer malleable iron pipe fittings are to BS143/1256, ISO49 and threads (taper male and parallel female) are to BS21, ISO7/1. The fittings are available self-colour (black) or hot dip galvanised finish to BS729 for increased corrosion resistance. Pressure rating is 25 bar at service temperature -25°C to +120°C and 20 bar at 120°C to 300°C.,Crane Fluid Systems straight pipe fittings are available self-colour (black) or galvanised finish, with taper internal and external pipe threads to BS21 and ISO7 for pressure-tight joints. They can be used with BS1387 steel tube for air, gas, steam and water services. Pressure rating is 25 bar at service temperature -20°C to +120°C and 20 bar at 120°C to 300°C.

Техническая спецификация
pdfMalleable cast iron fittings Data Sheet
pdfMalleable cast iron fittings Technical Catalogue

Внешнее покрытие:
Черный оксид
Диаметр внутренний:
3/4in
Совместимое подключение:
3/4 in BSPP
Стандартная резьба:
BSPP
Толщина:
10мм
