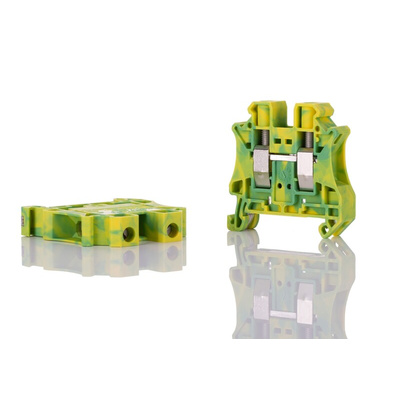

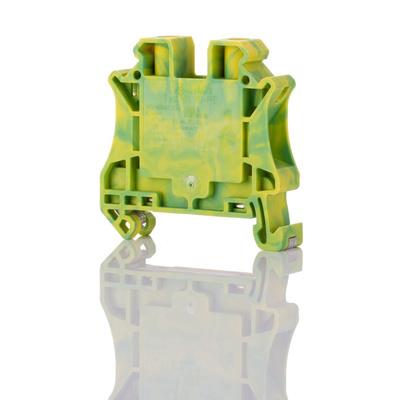

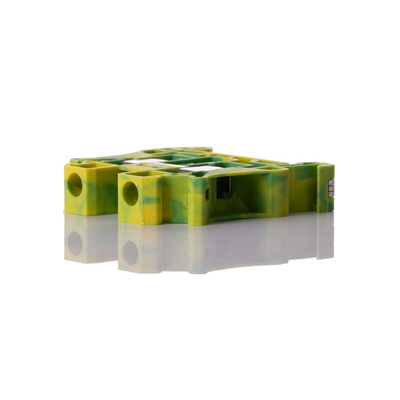

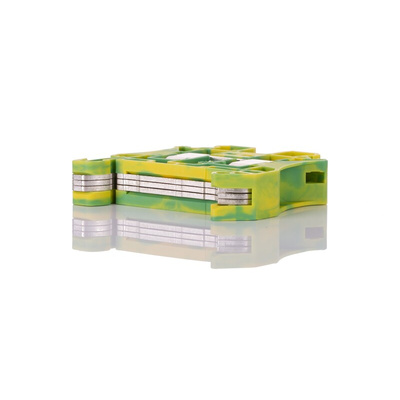

3044173, Phoenix Contact UT 10-PE Series Green/Yellow DIN Rail Terminal Block, 0.5 → 16mm², Single-Level, Screw

Phoenix Contact DIN Rail Terminal Block, 76A Current Rating, 2 Connections - UT 10-PE - 3044173

Safely ground your DIN rail using this terminal block from Phoenix Contact. It's made with thermally stable polyamide to provide insulation and make it resistant to shocks, and it's rated for surge voltages up to 8kV to help keep your electrical installations safe. This grounding block comes in an industry-standard green and yellow colour to make it easy to recognise and locate on your rail.
The modular block has a clip-on design for quick installation, while screw terminals are on hand to keep your wiring secure. These terminals accept cable sizes between 0.5 and 16mm² to give you flexibility. As it has ATEX certification, this unit's suitable for use in hazardous areas that have explosive atmospheres. This makes it an ideal choice for railway industry, plant engineering and machine-building applications.

Features & Benefits

• Compatible with accessories in the CLIPLINE range to help you customise your electrical distribution system
• Flame-retardant to help improve the fire safety of your electrical installations
• Wide operating temperature range between -60°C and +110°C for use in demanding environments

Phoenix Contact CLIPLINE UT Range

Datasheet 3044173

Line Drawing - 3044173
