3044636, Phoenix Contact UTTB 2.5 Series Grey Double Level Terminal Block, 0.14 → 4mm², Double-Level, Screw Termination,

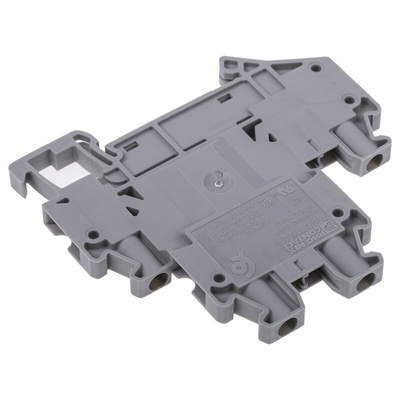

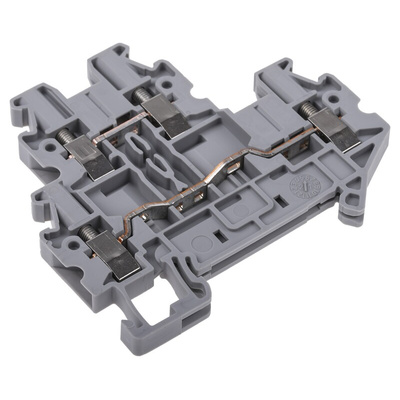

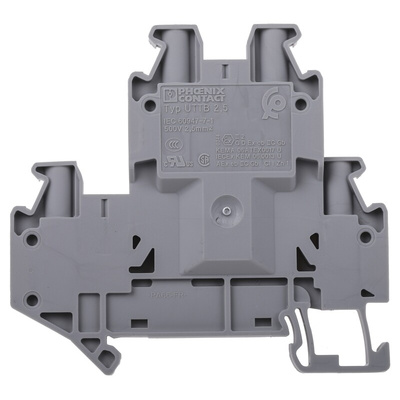

Phoenix Contact Double-Level Terminal Block, 500V Voltage Rating, 24A Current Rating - UTTB 2,5 - 3044636

Get all your wires in a row with this double-level terminal block from Phoenix Contact. The multi-level design simplifies your setup – as it supports up to four connections, you can run multiple circuits through one component. With dimensions of 69.9 (L) x 5.2mm (W), it's also big on space economy and takes up little room on a DIN rail.
Screw terminals keep wires held firmly in place to reduce accidental disconnections and service interruptions. Installation shafts provide channels for fasteners to help with precision fitting. You won't need to retighten screws, as it uses the Reakdyn principle to prevent loosening. For versatility and easy compatibility, the item handles 26 to 12AWG conductors.
This unit's made from hardwearing PA, so it's a durable option that shrugs off the demands of tough environments. Weighing in at just 15.18g, it isn't a drag on your mounting platform. You'll find terminal blocks like this one used in railway applications, industrial control equipment and plant engineering operations.

Features & Benefits

• ATEX approved for safe use in potentially explosive environments with temperatures between -60°C and +110°C
• UL 94-V0-certified housing helps prevent the spread of fires
• Robust copper alloy metal parts for effective electrical and thermal conductivity

Phoenix Contact CLIPLINE UT Range

Datasheet 3044636

Instruction Sheet - 3044636

Line Drawing - 3044636
