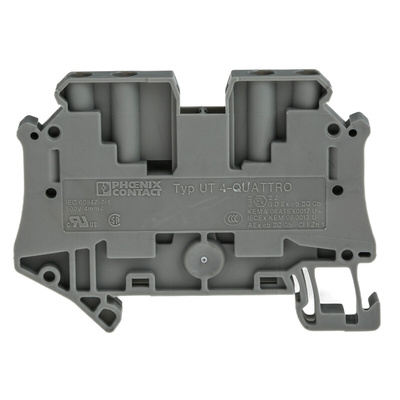

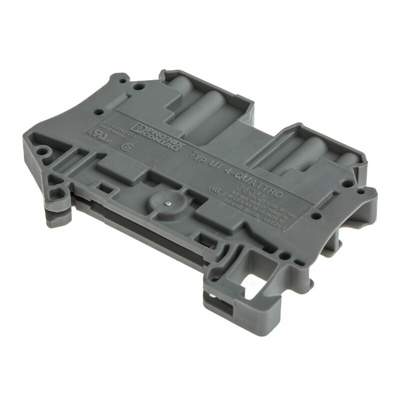

3044571, Phoenix Contact UT 4-QUATTRO Series Grey Feed Through Terminal Block, 0.14 → 6mm², Single-Level, Screw

UT Quattro

4-way grey and green/yellow screw terminals
Cable CSA 4mm²
Rated at 500V/39A
Terminal cover available

Phoenix Contact Feed-Through Terminal Block, 32A, 500V AC/DC - UT 4-QUATTRO - 3044571

Use this feed-through terminal block from Phoenix Contact to connect process control equipment with varying conductor sizes. Its multi-conductor terminal points accept wires ranging in diameter from 26 to 10AWG (American Wire Gauge), making it compatible with a wide variety of conductors.
The unit's screw terminals meet universal standards and are easy to use. They hold wiring firmly without causing them any damage, which reduces the need for regular maintenance. The terminal block is protected against over-voltage and offers effective insulation thanks to a polyamide housing that protects operators from electric shocks. It's resistant to rises in voltage and temperature for reliability in challenging conditions.
You can use this block safely in railway applications. It meets DIN EN 50155 standards for electronic equipment used on rolling stock and retains its insulation properties in both hot and cold conditions.

• Large surface marking area for easy identification of connections
• Approved for use in environments where explosive atmospheres may be present
• Conforms to UL 94-V0 flammability standards so is self-extinguishing and won't contribute to an electrical fire
