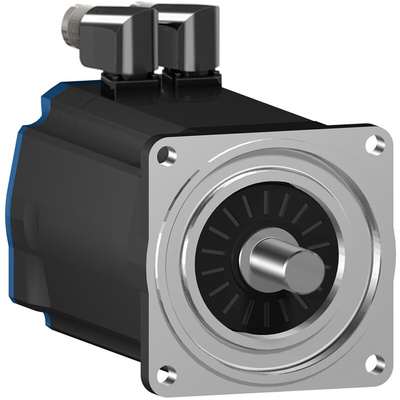

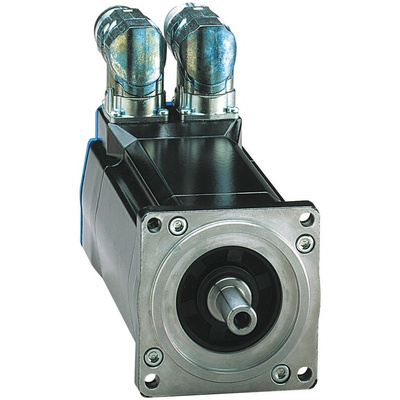

BSH1002P31A2A, Schneider Electric 480 V 1.7 kW Servo Motor, 6000 rpm, 18.3 Nm Max Output Torque, 19mm Shaft Diameter, Серводвигатель

Schneider Electric Servo Motor, 1.7kW Power Rating, 6000rpm - BSH Series - BSH1002P31A2A

For precise movement of your machine's rotating parts, choose this high-performance servo motor from Schneider Electric. With a maximum rated speed of 6000rpm, this device is designed for high-tempo operations. Its shaft is keyed to make a secure connection to the rotating part and for smooth torque transmission. This motor has integrated SinCos Hiperface encoders to let the drive read its parameters directly for precise synchronisation. A power rating of 1.7kW means you can rely on this component for optimal performance in heavy-duty operations.

• Compact dimensions of 138.5 (L) x 100 (W) x 205mm (D) for space efficiency in small enclosures
• Light weight of 5.9kg for easy handling
• Compatible with third-party motion controller applications for versatility
• IP67 (ingress protection) rating indicates it can withstand dust and immersion in up to 1m of water for 30 minutes

Applications

• Industrial conveyors
• Material handling equipment
• Escalators and lifts

What could lead to this servo motor overheating?

This motor can overheat if the load is too heavy or if you're using the wrong motor rating. It's important to ensure the load isn't higher than the motor's power rating for optimal performance.

Schneider Electric Lexium 05

The Lexium 05 servo drives and motors are suitable for a wide range of positioning and precision speed control applications including, printing, packaging, labelling and materials handling.,The drives may be connected to any 3rd party motion controller with analogue, Fieldbus (CanOpen, Modbus or Profibus*), or pulse and direction interfaces.,Cabling accessories enable simple connection between drive and controller.,In Fieldbus operation the drive contains a built-in positioner allowing (CanOpen, Modbus) control of the drive by sending simple move parameters and commands to the drive (Move type, distance, speed, acceleration…)

BSH Range Servo Motors Characteristics

BSH Range Servo Motor Sizing Data Sheet

BSH Range Servo Motors Product Presentation
