AZ15/16-B1-2024, Schmersal Actuator for Use with AZ 15 Safety Switch

AZ16, Standard

Standard, simple machine guard safety switch
Housing has 4 entry points - front, rear and 2 at top
Not sensitive to dirty conditions by virtue of patented roller system
Multiple coding
IP67 protection

Note

Actuator must be ordered separately, see accessories

Standards

IEC/EN60947-5-1, BG-GS-ET-15

Approvals

BG, UL, CSA

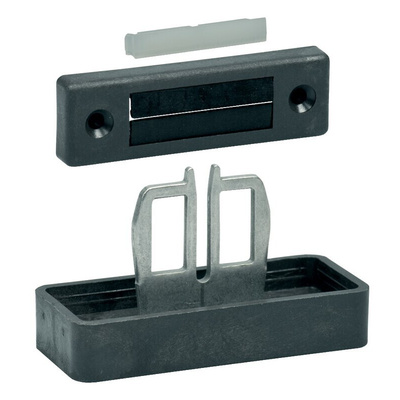

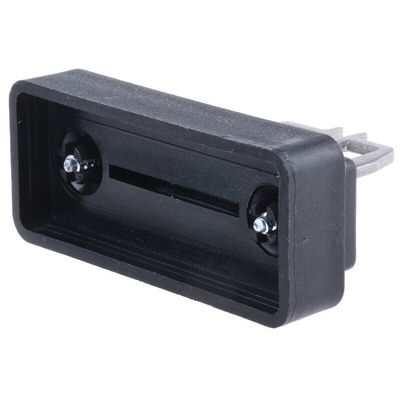

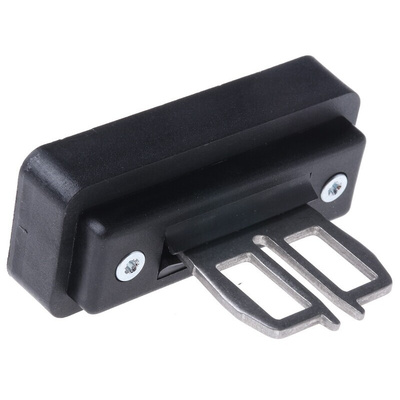

Schmersal Stainless Steel Actuator, For Use With AZ 15 Safety Switches, 9.2g - AZ15/16-B1-2024

Complete your safety switch setup with this actuator from Schmersal. This unit is compatible with safety switches from the AZ 15 range for ease of assembly. It features a lip seal design that locks the actuator securely in place. The seal also helps to prevent the build-up of dirt particles, ensuring optimal performance. This actuator is made from durable stainless steel that's resistant to wear and corrosion, making it suitable for use in demanding environments.

Features & Benefits

• Light weight of 9.2g to place minimal strain on your equipment
• Low coding level according to ISO 14119 for safe use in magnetic reed switches

Applications

• Storage facilities
• Oil and gas industry
• Laboratories

Where should I mount this actuator?

You can mount this actuator on the moving part of your sliding or removable door using set screws to tighten it. This helps protect it from tampering and accidental disconnection. When mounting it, ensure that the centre of rotation of the actuator is at the same level as the upper edge of the safety switch for effective operation.
