FLUKE-115 EUR, Fluke 115 Handheld Digital Multimeter, With UKAS Calibration, Мультиметр

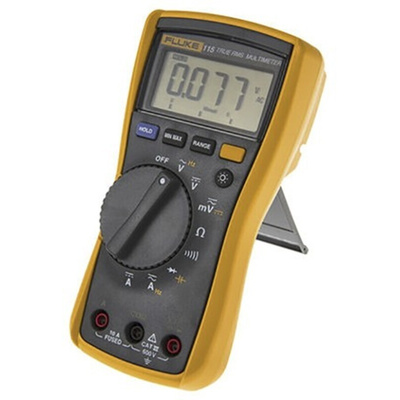

Fluke 115 Multimeter

With its simple operation, compact design and ease of use, the Fluke 115 True RMS digital multimeter provides the perfect answer for general purpose electrical and electronic test requirements. An everyday multimeter for technicians, the 115 is for in field service, industrial, and applications where more than the basic functions simplify work.

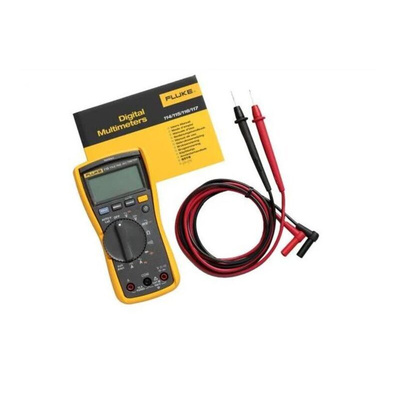

The Fluke 115 displays True RMS voltage and current readings with 600 count resolution, continuity and capacitance, making it perfect for quick verifications and field service use. The model is supplied with a test lead and manual.

Fluke 115 Digital Multimeters are independently tested for safe use in CAT III 600V Environments.

Features and Benefits

• Large white LED backlight to work in poorly lit areas
• Resistance and continuity
• Frequency and capacitance
• Maximum Voltage ac/dc 600V
• 10A ac/dc current measurement
• Min/Max/Average to record signal fluctuations
• CAT III 600 V safety rated

Addtional Specifications

• DC Voltage Accuracy: 0.5% + 2
• DC Voltage Lowest Resolution: 0.1mV
• AC Voltage Accuracy: 2.0% + 3
• AC Voltage Lowest Resolution: 0.1mV
• AC Voltage Max Frequency: 1kHz
• Display Count 6000
• Display Update 4/sec
• Bar Graph Segments 33
• Bar Graph Update 32/sec

Comparison with Fluke 117 (RS 616-1460)

Weight and Size

Both multimeters can offer the benefit of portability with these two models being lightweight and compact. Both of them have a weight of 550 g.

Maximum Voltage

Both of these multimeters have a maximum voltage of 600 V.

Battery

The battery life within these two models is vitally important, so they function for a long time. They are equipped with a 9 V alkaline battery, both of which can provide up too 400 hours of power without backlight.

Safety

Both models are also regarded as being excellent when it comes to safety. They have a CAT III safety rating.

Warranty

Regardless of the model that you choose, you have peace of mind since they are both backed by 3 years of warranty from the manufacturer.

Applications

This is a difference between the two models. The Fluke 115 is more for general testing and Fluke 117 is for more specialised testing. For many DIY enthusiasts, the 115 will suffice.

Note

For Calibrated Articles - Please note that accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.

Fluke 115 Electrical Multimeter Data Sheet

Fluke 114, 115, and 117 True-rms Multimeters Users Manual
