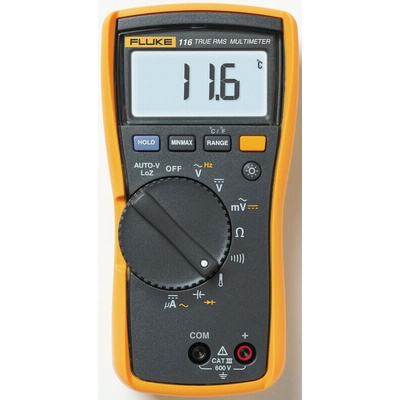

FLUKE-116 EUR, Fluke 116 Handheld Digital Multimeter, True RMS, 600μA ac Max, 600μA dc Max, 600V ac Max - RS Calibrated, Мультиметр

Fluke 16 True RMS HVAC Digital Multimeter with Built-In Thermometer

The Fluke 16 Digital Multimeter is designed to function like a standard Multimeter and exclusive HVAC modes, unlike other models in the Fluke 10 series, the Fluke 116 comes with a built-in thermometer, allowing engineers to measure temperature and microamp mode for testing flame sensors to quickly troubleshoot problems for HVAC applications. The Fluke 116 measures resistance, continuity, frequency and capacitance. The Fluke 116 Multimeter are independently tested for safe use in CAT III 600 V Environments.

Why buy the Fluke 116 Digital Multimeter?

• VoltAlertTM Technology for intergrated non-contact voltage detection
• AutoVolt feature for automatic AC/DC voltage selection
• LoZ: Low input impedance to eliminate stray voltage ensures that ghost voltages don’t have an effect on readings
• Large white LED backlight, perfect for when you’re working in darkened areas
• True RMS meanng it will maintain its accuracy when testing on irregular AC connections
• Min/Max/Average to record signal fluctuations
• Current measurement 20A (30 seconds momentary; 10A continuous)
• Resistance , continuity, frequency and capacitance testing capability

Fluke 116 HVAC Digital Multimeter key benefits?

• Compact, Ergonomic design and can be used with one hand
• Built-in thermometer allows Temperature measurement from -40°C to +400°C using the Type K thermocouple input adaptor
• Capacitance up to 10000μF to test motor start and run capacitors
• Microamp current range for flame sensor measurement down to μA
• 4000 count auto ranging Multimeter
• 40MΩ resistance range
• 33 segment analogue bargrapgh on display
• Diode test
• Continuity test
• V-Check™ mode for safety. Automatically switches from ohm/continuity mode to measure ac or dc volts when voltages above 4.5V are present at the input
• Min/Max recording with elapsed time (ideal for recording signal fluctuations)
• Continuity capture symbolically displays open and short circuits as brief as 250μs
• Meets IEC1010-1 (safety standard) CAT III 600V
• Replacement type K thermocouple available separately accepts other type K thermocouple sensors with subminiature connectors (see accessories)

What are the typical Applications for the Fluke 116 Digital Multimeter?

The Fluke 116 model is built for engineers who work in the HVAC environment (heating, ventilation and air conditioning)

Additional Specification

• DC Voltage Accuracy: 0.5% +2d
• AC Voltage Accuracy: 2.0% +3d
• DC Current Accuracy 1.0% +2d
• AC Current Accuracy 1.5% +3d
• Resistance Accuracy: 1.5% +2d
• Diode Test Range: 2.000V
• Diode Test Resolution: 0.001V
• Diode Test Accuracy: 0.9% +2d
• Capacitance Accuracy: 1.9% +2d
• Temperature Resolution 0.1C
• Temperature Accuracy 1% +10d
• Display Count 6000
• Display Update 4/sec
• Bar Graph Segments 33
• Bar Graph Update 32/sec
• Please note accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %."

Does the Fluke 116 come with a warranty?

The Fluke 116 comes with a 3 year warranty giving engineers the peace of mind

Standards

From Fluke, the 116 is designed for heating, ventilation and air conditioning (HVAC) engineers. The model includes temperature measurement and microamp current ranges to quickly troubleshoot HVAC problems.

Contents

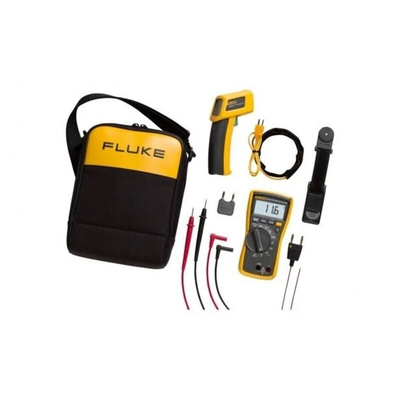

TL75 Test Leads, 80BK Integrated Temperature Probe, holster, user’s manual and 9V battery (installed)

FLUKE Multimeter, Built-in Thermometer, LCD Display - FLUKE-116

Get the readings you need in the palm of your hand, thanks to this multimeter from FLUKE. It's a nifty gadget that measures resistance, continuity, frequency and capacitance to keep your equipment in prime condition and reduce downtime. Specially designed for HVAC systems, the unit has a built-in thermometer that records temperatures between -40°C and +400°C. Plus, it features microamps to test flame sensors. As a True-RMS instrument, it delivers spot-on readings at ±1.5% for AC and ±1% for DC voltages. An ergonomic design means the unit fits comfortably in your palm and supports smooth one-handed operation.

Features & Benefits

• Large digits and a backlight means poor light won't stop you from working
• Battery-powered, so there's no need to find an electric socket
• Safety rated up to 600V, to work with high voltages in distribution circuits

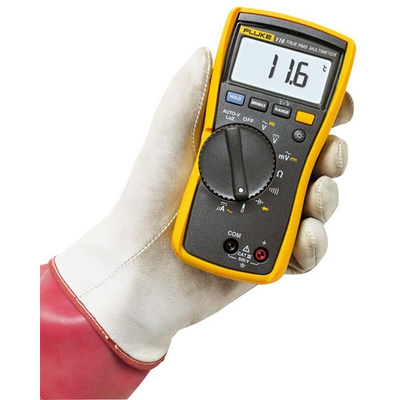

• Ergonomic design for comfortable handling

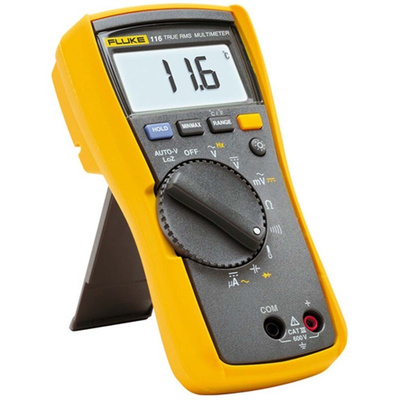

• Integral stand props it up on benches

Applications

• Building maintenance
• Industrial heaters and driers
• Ducts and vents

Can I use this multimeter to test flame sensors?

Yes, this multimeter has microamps to let you test flame sensors on domestic boilers as well as industrial heaters and driers.

Is this multimeter safe?

Yes, it features a V-Check safety mode that automatically switches from ohms to measure AC or DC volts when detecting spikes above 4.5V.
