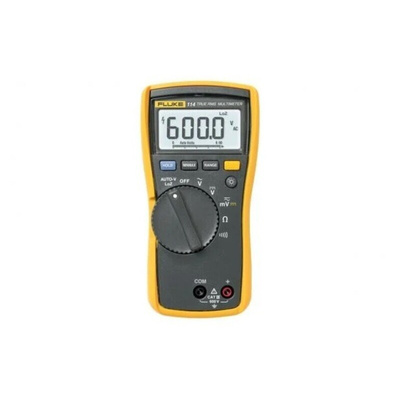

Fluke 114 Digital Multimeter

The compact Fluke 114 multimeter is a CAT III 600 V safety rated True RMS meter for electrical troubleshooting, giving you results without the complications. It is designed for easy one-hand operation and go/no go testing for use by professional electricians in both commercial and residential applications. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so-called ghost voltage and prevents false readings and improve accuracy when testing on irregular waveforms. The Fluke 114 displays True RMS voltage and current readings with 6000-count resolution, and tests continuity and resistance. A large white LED backlight aids work in poorly lit areas. An easy-open battery access door makes battery changes easy.

What are the key benefits of the Fluke 114 Digital Multimeter?

• True RMS digital multimeter, ideal for electrician and tradesmen
• It has a 6000 count resolution
• LCD display with a large white LED backlight and analogue bargraph

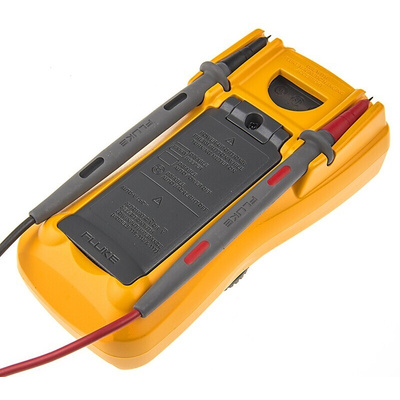

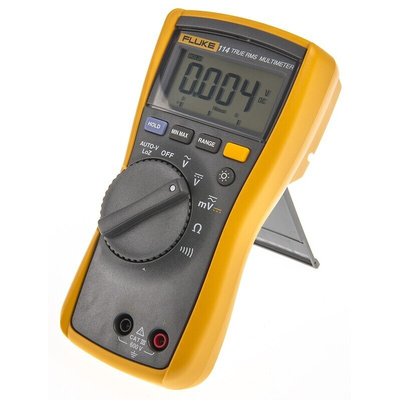

• An integrated tilt stand with a removable holster
• Min/Max/Average records signal fluctuations over a period of time
• Prompts when battery levels are low
• Resistance and continuity testing capability with a beeper integrated sound
• CAT III 600 V safety rated
• AutoVolt feature that detects AC or DC voltage

Additional Specifications

• DC Voltage Accuracy: 0.5% + 2
• DC Voltage Lowest Resolution: 0.1mV
• AC Voltage Accuracy: 2.0% + 3
• AC Voltage Lowest Resolution: 0.1mV
• AC Voltage Max Frequency: 1kHz
• Display Count 6000
• Display Update 4/sec
• Bar Graph Segments 33
• Bar Graph Update 32/sec

What is included?

• Fluke 114 Digital Multimeter

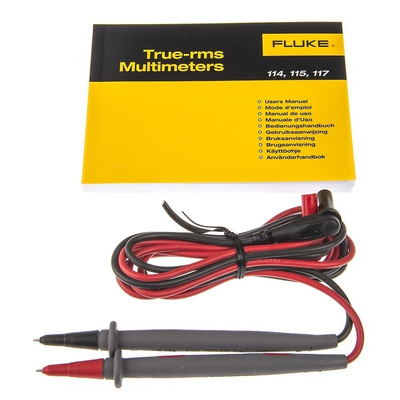

• Test lead set
• Holster
• 9v battery already installed
• User manual

Does the Fluke 114 Digital Multimeter come with any warranty?

You have peace of mind as the Fluke 114 Digital Multimeter is backed by 3 years of warranty from the manufacturer.

Note

For Calibrated Articles - Please note that accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.

FLUKE Multimeter, AutoVolt Capability, 400h Battery Life - FLUKE-114

Features & Benefits

• Low battery prompt means you won't be left powerless
• Hold button pauses readings for easy viewing and recording
• Backlit LED screen for easy viewing in low-light environments

Applications

• Lighting control
• Automotive engineering
• Prototyping
• Consumer electronics
• Packaging facilities

What's the voltage capacity of this multimeter?

With an AC/DC voltage measurement range between 0 and 600V AC/DC, you can reliably use this multimeter to test low and high power levels in your electrical circuits.

How long will the battery last?

For reliability, you can use this multimeter for 400 hours before needing to swap the batteries.
