RS PRO Straight Through Hole PCB Header, 16 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded, Разъем

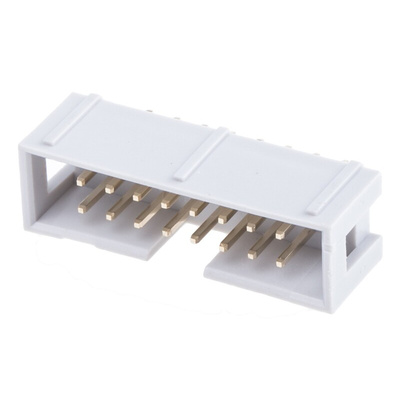

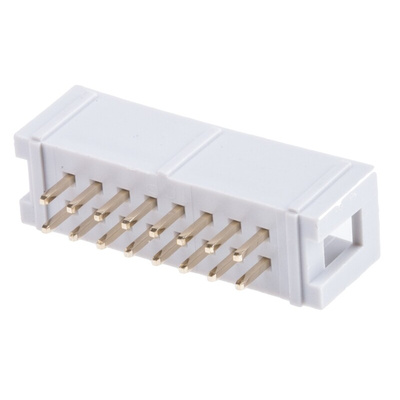

RS PRO, 16 Way, 2 Row, Straight PCB Header

This two-row straight PCB (printed circuit board) header from RS PRO is used to link PCBs using ribbon cable and universal sockets. It has 16 brass contact pins for improved conductivity, which are housed inside of a plastic case for added protection against short circuits.
The component has a temperature range of -55°C to +105°C, making it suitable for use in a wide range of environments ranging from cold storage warehouses to hot manufacturing plants. It's a through-hole mounting type, so it's quick and easy to install. This product has been tested by engineers for safety and quality. It also meets Restriction of Hazardous Substances (RoHS) standards, which means it contains only minimal amounts of any harmful materials.

Features and Benefits

• Straight body orientation
• Copper contact material
• Gold contact plating
• Current rating of 1 A
• Minimum insulator resistance of 5000 MΩ at 500 V DC
• Maximum contact resistance of 20 MΩ at 100 mA DC
• Housing made of 30% glass-filled PBT (polybutylene terephthalate) material
• Operating temperature range of -55°C to +105°C
• Male gender
• Through-hole mounting type
• 16 contact pins
• Two rows
• Pitch of 2.54 mm
• Shrouded
• IDC (insulation-displacement connector) termination method
